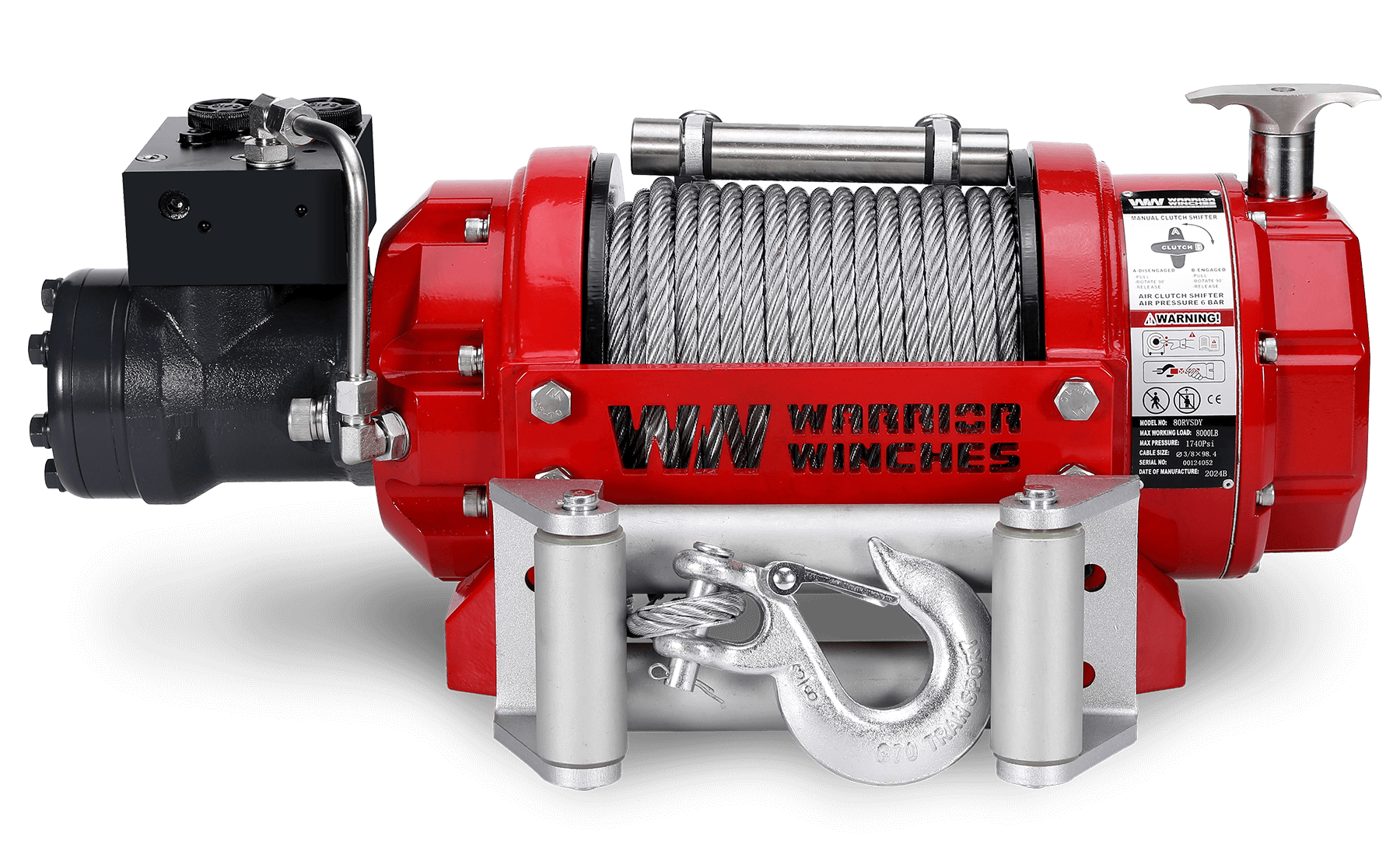

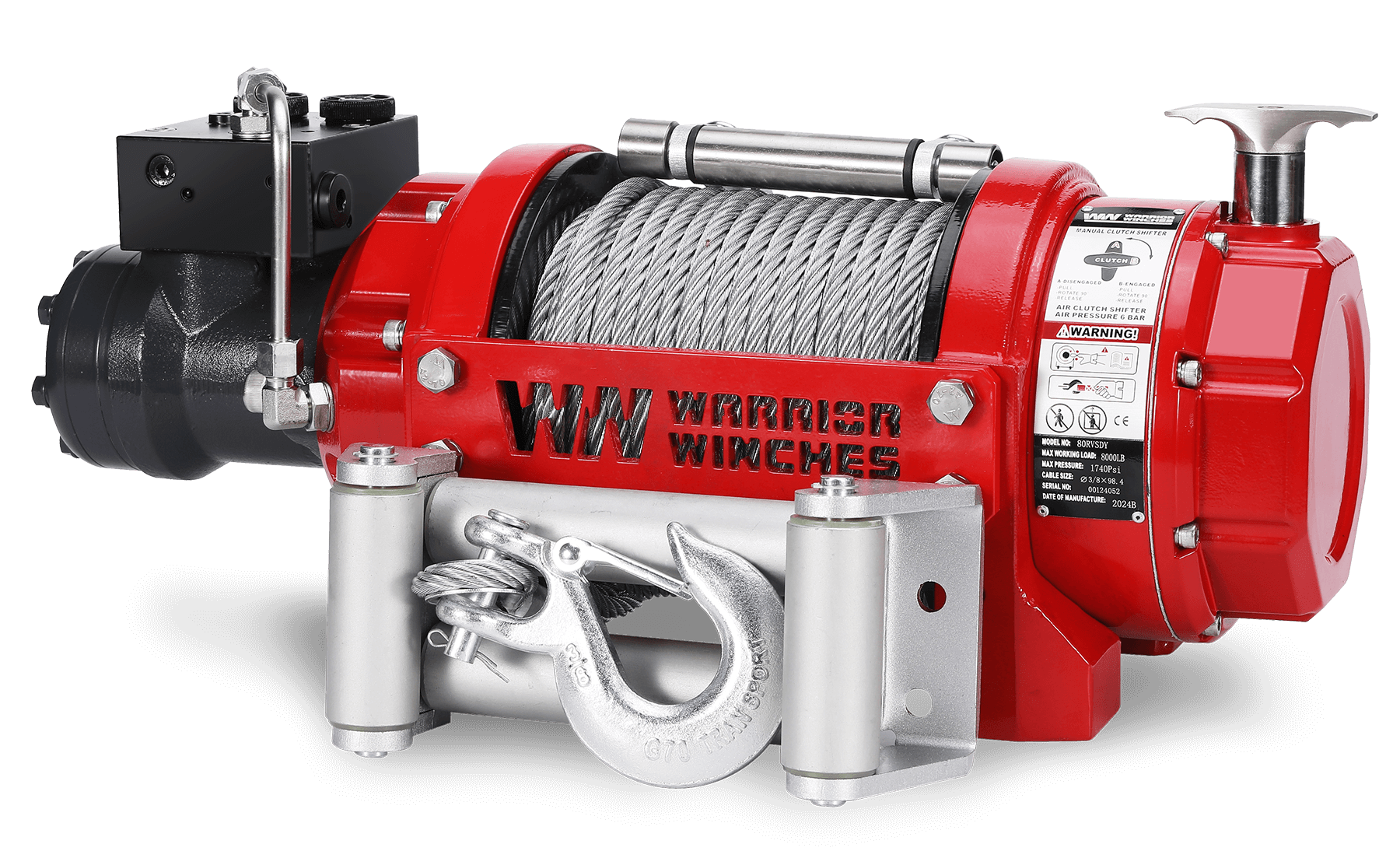

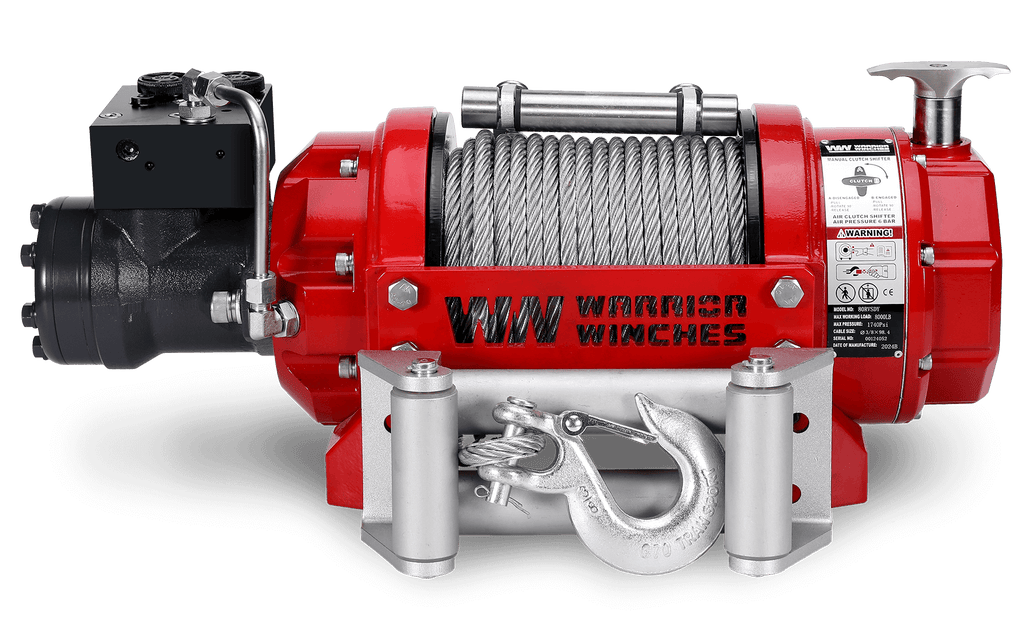

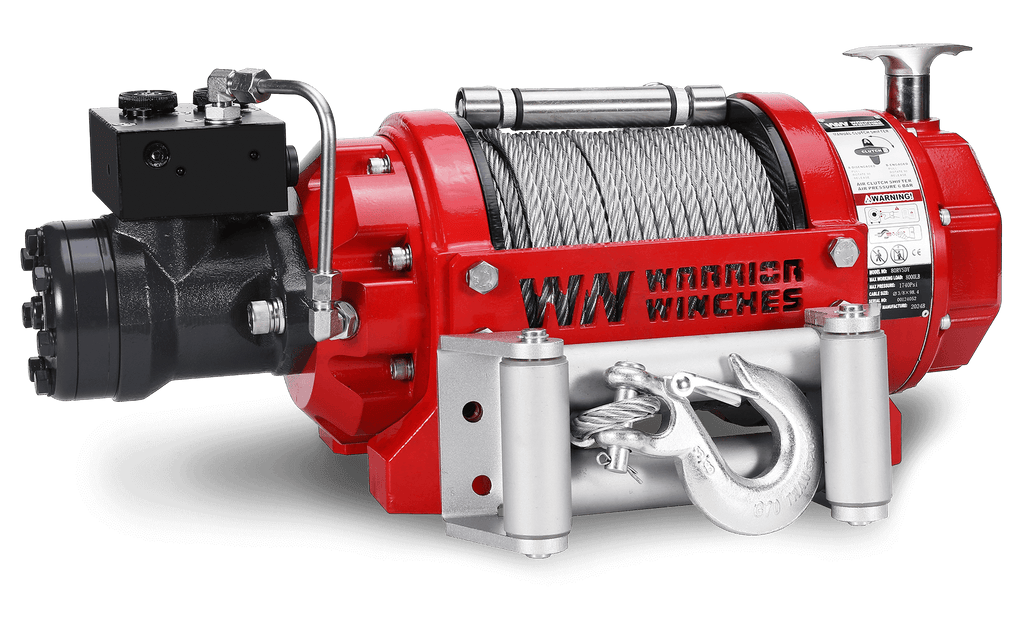

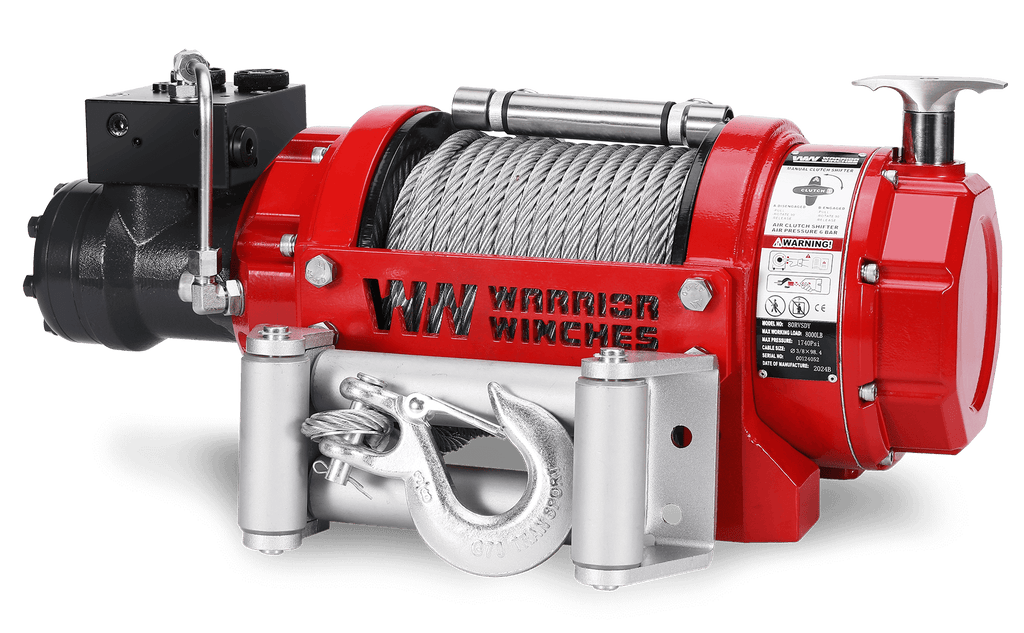

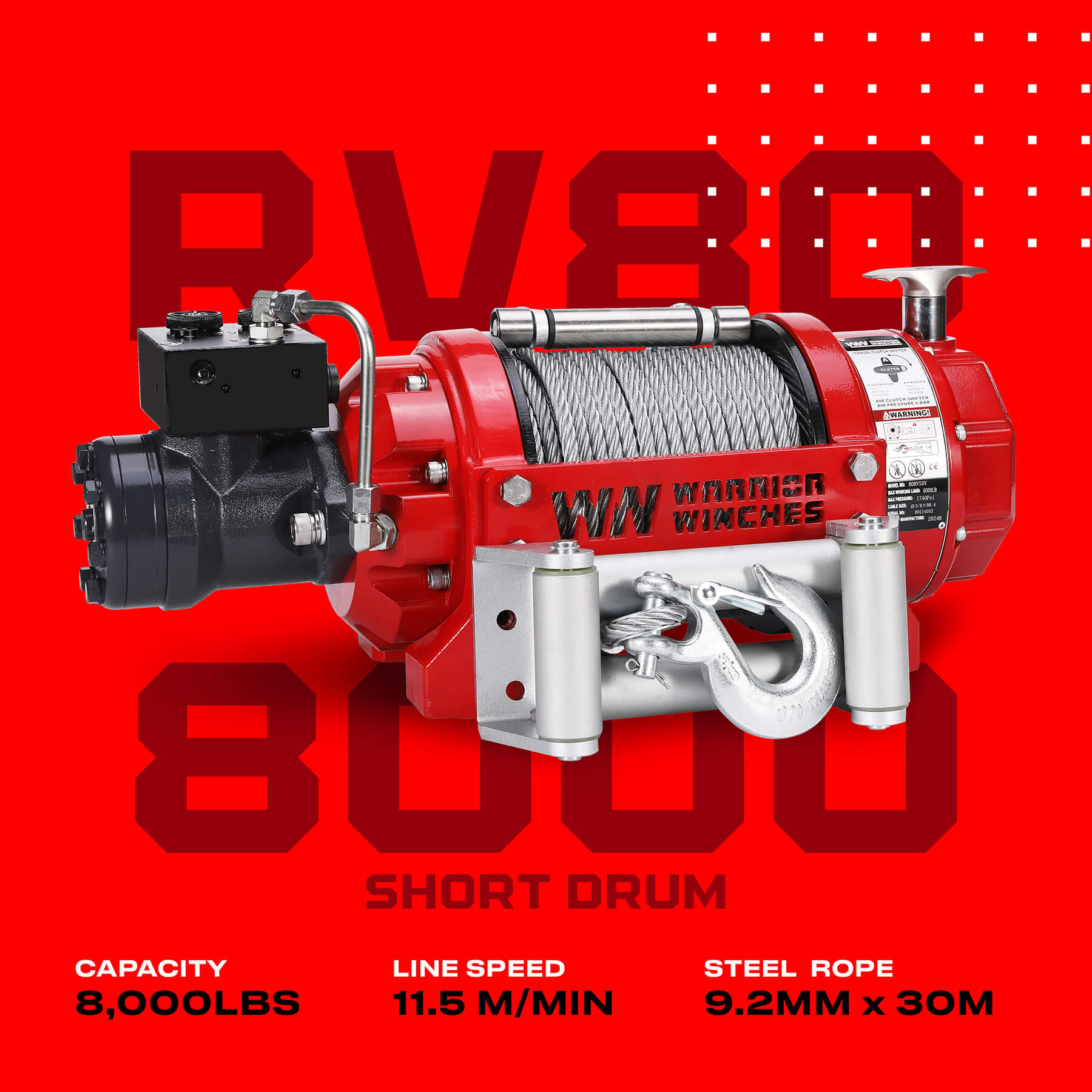

RV 8000 Hydraulic Short Drum Winch

SKU EAN
Synthetic Rope 80RVADY 5060966746201
Wire Rope 80RVSDY 5060423982937

Rope: Wire Rope
Find a store near you
Or buy online from our approved partners:
Bimson Power Approved Warrior StockistsUk Winches Approved Warrior Stockists

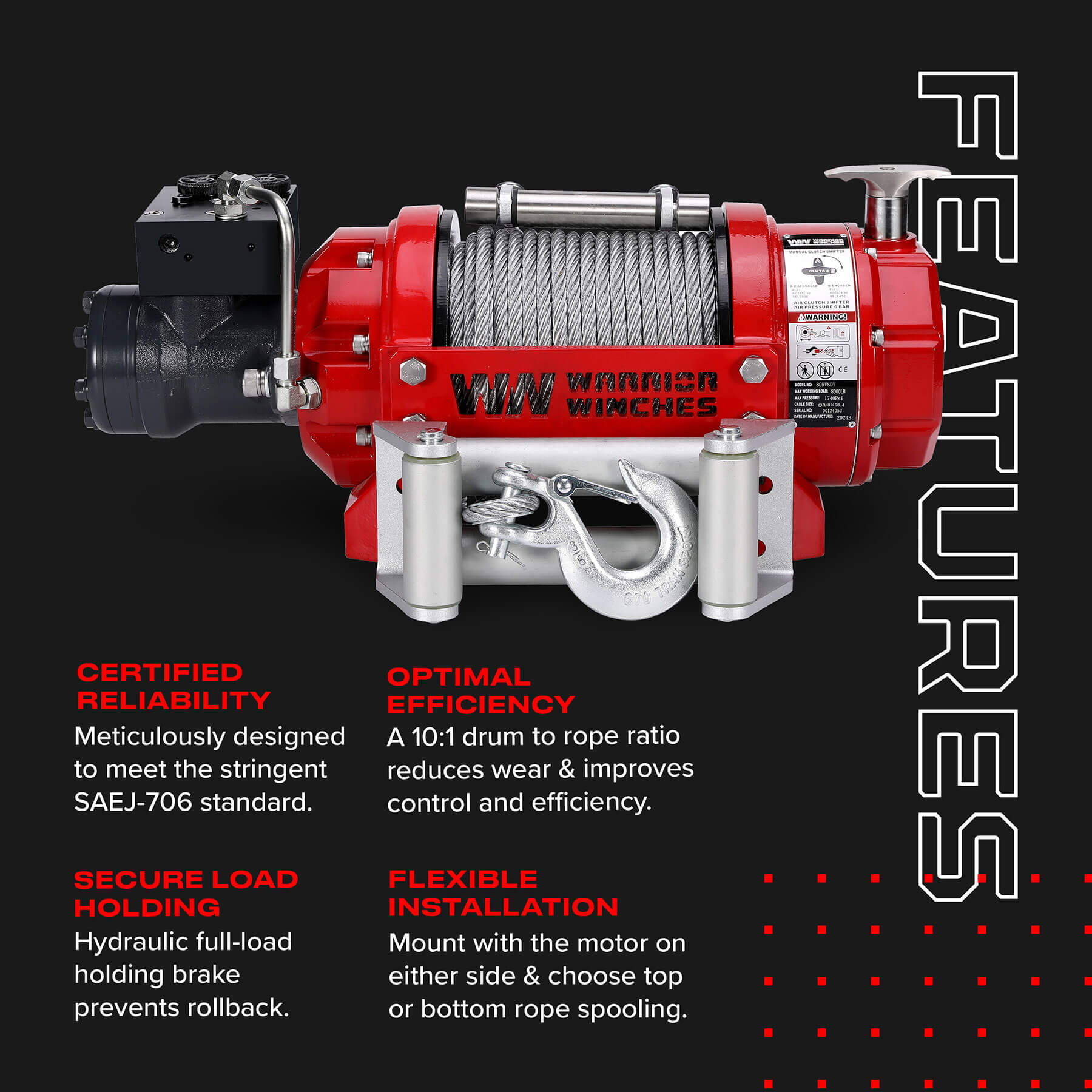

Features

  • Shorter Drum for limited space installs
  • Conforms to part of BS EN 14492-1:2006+A1:2009
  • Drum to rope Ratio 10 : 1
  • Wire Rope 2 : 1 Safety Factor
  • Hydraulic Full Load Holding Brake
  • Reversable Orientation: These winches can be mounted with the motor on the left or right with the rope spooling from top or bottom.

Our RV Series hydraulic winches are meticulously engineered to meet the SAEJ-706 standard, ensuring quality and performance. With a robust Drum to Rope Ratio of 10:1, these winches deliver optimal efficiency, providing the power you need for challenging commercial and industrial applications.

Safety is our priority, and as such the Wire Rope boasts a 2:1 Safety Factor, whilst the Rope Fixing feature guarantees a robust 2.5 times rated load capacity offering an additional layer of reliability in demanding scenarios. Equipped with a Hydraulic Full Load Holding Brake, these winches provide precise control, enhancing safety and operational stability during load handling.

The RV Series is available in a range of capacities, spanning from 10,000lbs to 18,000lbs, ensuring that there's a perfect fit for your specific needs. Whether you're dealing with intense industrial tasks or demanding commercial projects, our hydraulic winches offer the reliability and strength required to get the job done efficiently.

Choose the RV Series for a hydraulic winch that not only meets industry standards but exceeds expectations in durability, safety, and performance, making it the ideal solution for your toughest applications.

Combined with a suitable installation solution they can meet the requirements of BS EN 14492-1:2006+A1:2009 (Steel Cable Models Only).
Rated Line Pull8000 lbs
Motor TypeHydraulic
Gearing17.6:1
ClutchManual
Braking ActionHydraulic
Drum Size (Dia x L)102 x 169 mm
Cable MaterialSteel
Cable – Dia x LWire Rope: 9.2mm x 30.0m
Synthetic Rope: 9mm x 20.0m
Mounting Pattern222 mm x 114.3 mm / 222 mm x 165.1 mm mm

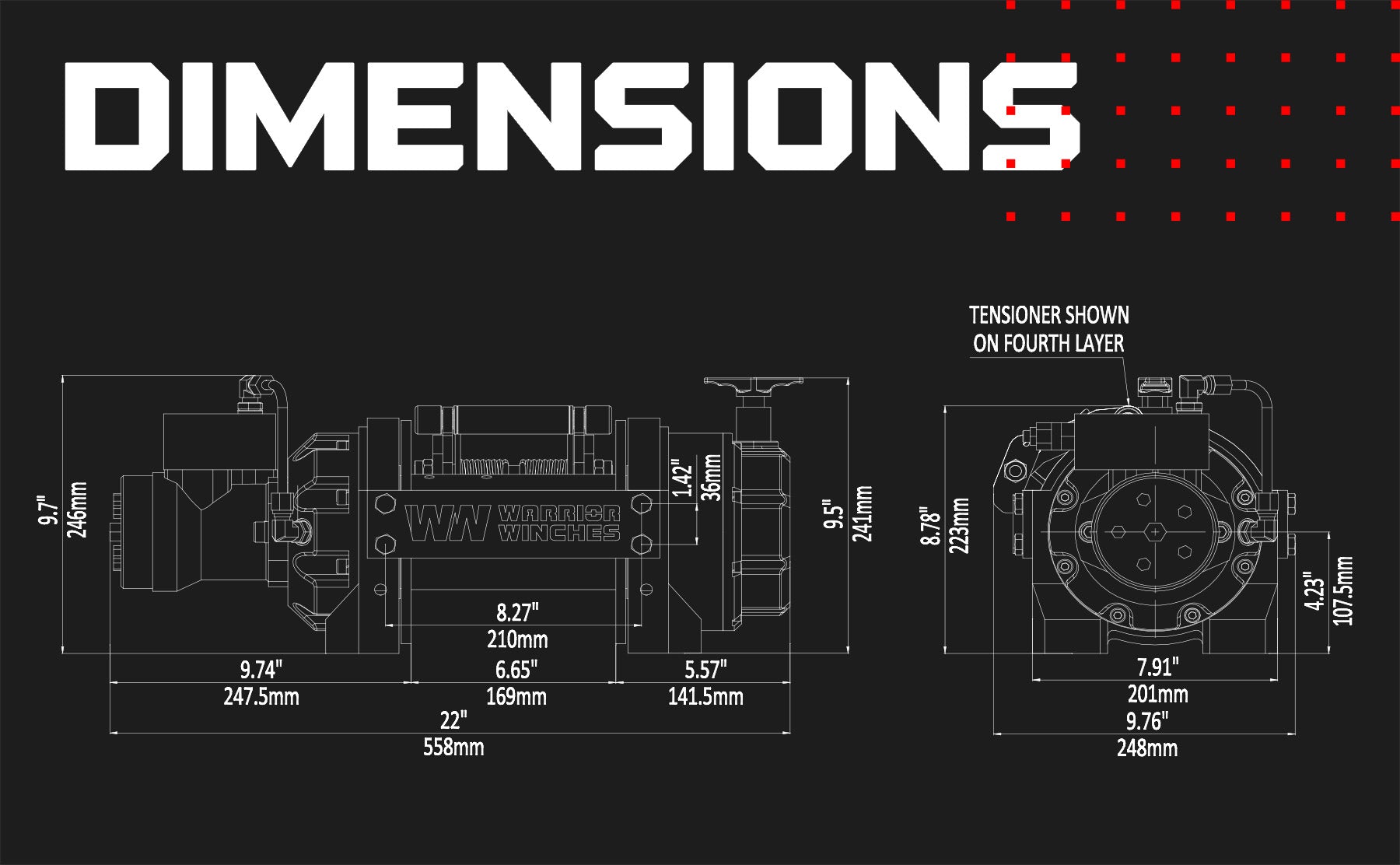

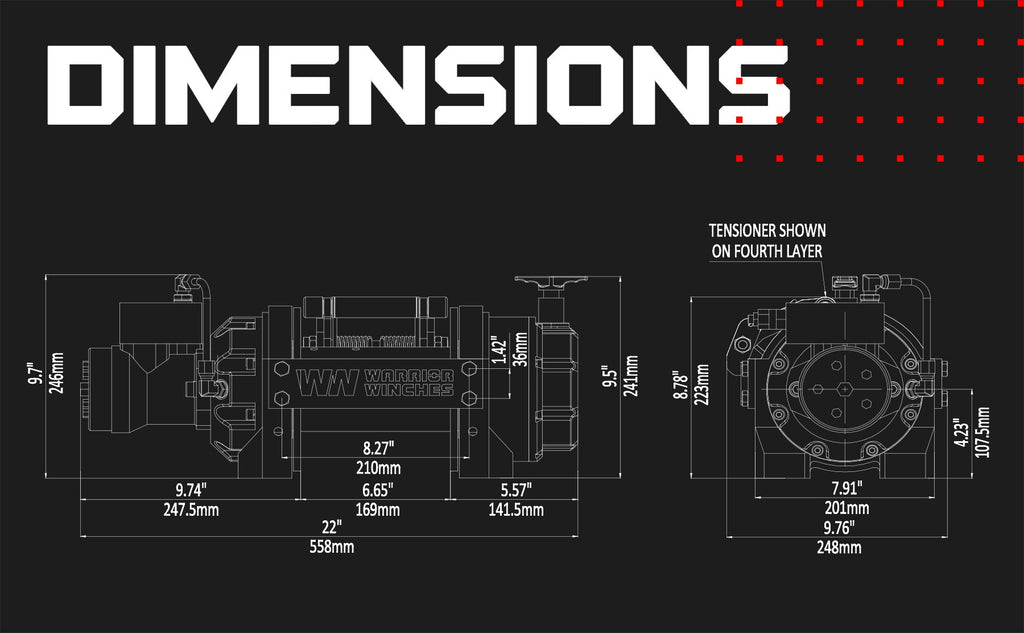

Dimensions558 x 237 x 241 mm
Weight47.6 kg
Max Flow L/Min5-60 L/Min
Max Pressure MPA12.0 Bar
CertificationCE



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 8000(3629) 18.4(5.6)
2 6864(3113) 42.3(12.9)
3 6010(2726) 69.5(21.2)
4 5345(2424) 98.4(30.0)
Line Pull
lbs (kgs)
Line Speed
ft/min (m/min)
Flow
L/min (G/min)
Pressure
Mpa
0 37.7(11.5) 5 (1.3) 2.0(290.1)
4000(1814) 23.9(7.3) 20 (5.3) 5.0(725.2)
6000(2722) 10.8(3.3) 40 (10.5) 8.0(1160.3)
8000(3629) 3.2(1.0) 60 (15.8) 12.0(1740.4)

What's in the box:

  • RV Hydraulic Winch
  • Heavy Duty Roller Fairlead OR Hawse Fairlead
  • Steel Rope OR Synthetic Rope
  • Heavy Duty Hook
  • Tensioner (Steel rope model only)
User Manual Download
Technical Drawing Download
Brochure Download
Parts List Download
