Warrior 500kg Scaffold Hoist

SKU EAN
110v / Pendant Remote 110VSH500 5060423980216
110v / Wireless Remote 110VSH500WRC 5060423980131
240v / Wireless Remote 240VSH500WRC 5060423980179
240v / Pendant Remote 240VSH500 5060423980162

Voltage: 110v

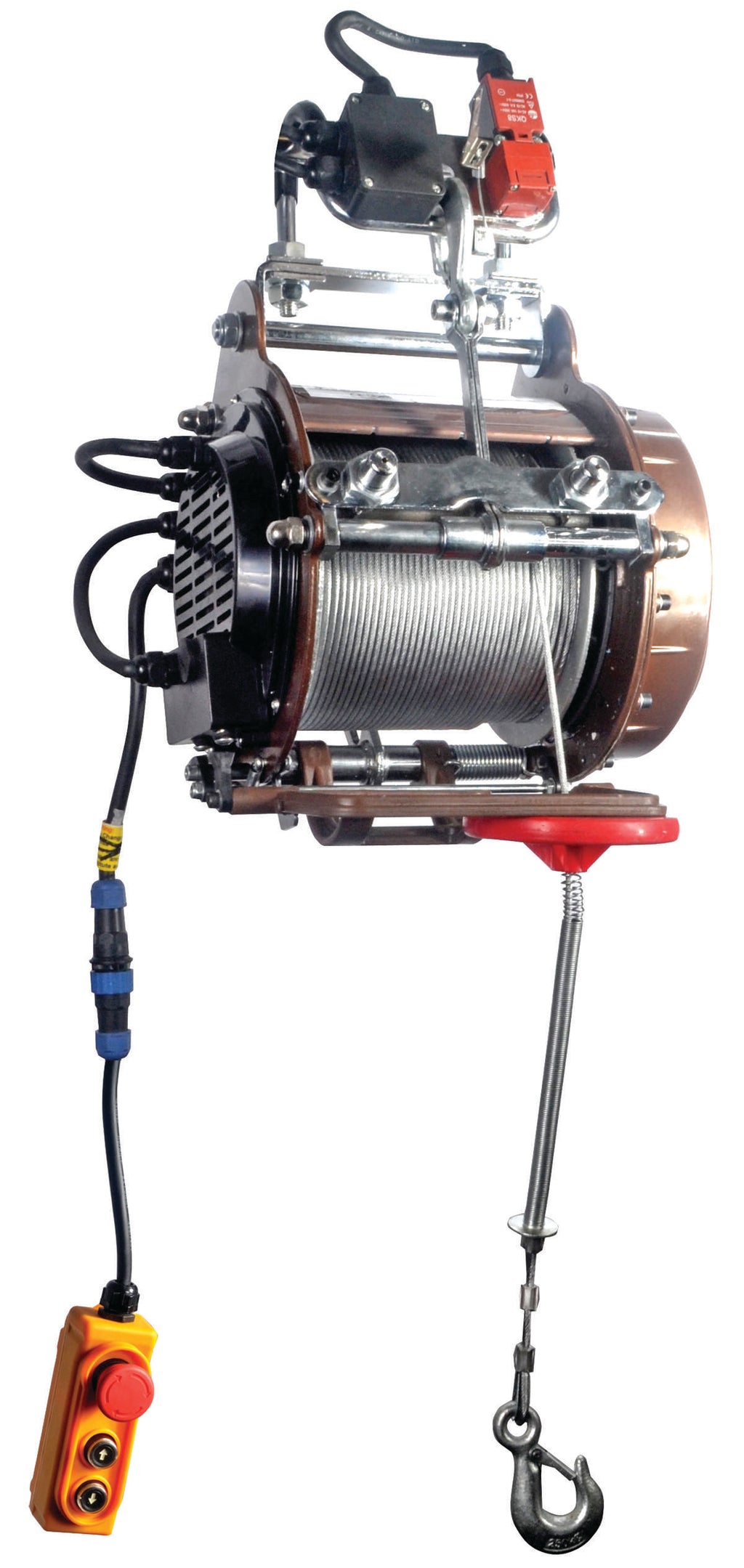

Remote: Pendant Remote
Find a store near you
Or buy online from our approved partners:
Bimson Power Approved Warrior Stockists

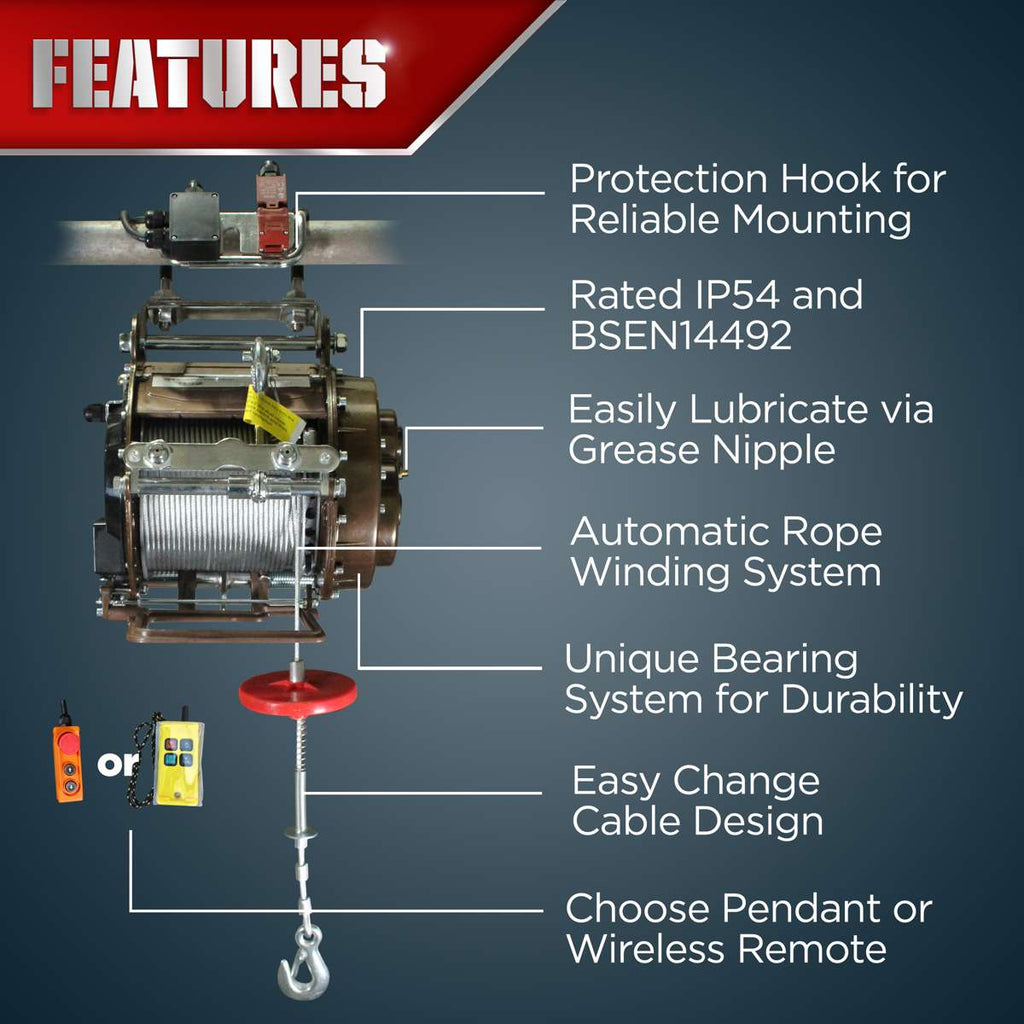

Features

  • Suspending style with protection hook allows for convenient and reliable mounting.
  • Unique automatic rope winding system lines up the steel rope with no mess and increases the lifespan of the rope.
  • Easily change the steel rope without needing to disassemble.
  • The Pulley Hook allows double lifting capacity.
  • New designed bearing system allows free rotating of the cable drum and increases the lifetime of the hoist.
  • Conforms to part of BS EN14492-1 and BS EN14492-2 standards.

Warrior 'Next Generation Scaffold hoist' leads the field in design and performance for the professional customer.

The simple Suspending style with key interlock protection hook allows easy installation and safe working. New auto rope winding and direction exchange device allows you to align the rope safely increasing the life of the rope significantly. High strength carbon construction, powder coated finish ensures maximum durability. Combined with a suitable installation these hoists can conform to part of BS EN14492-1 and BS EN14492-2. utilising a dynamic brake design for both static and dynamic loading with upper and lower limit switches. Thermal overload protection on the motor as standard.

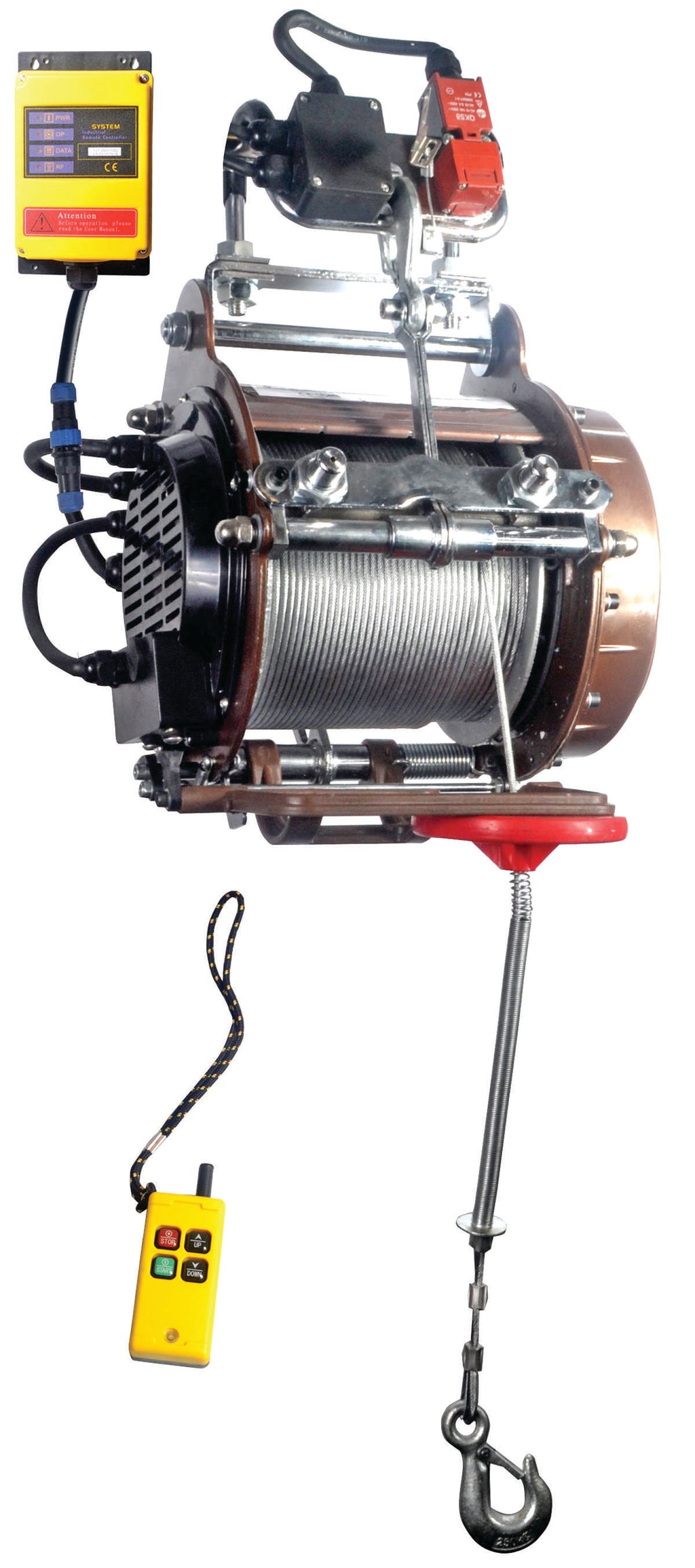

Optional Wireless Remote Version available.

Available in:
  • 110v (UK)
  • 240v (UK)
  • 220v (EU)
Rated Line Pull1102 lbs
Max Load500
Lift Height38m / 19m

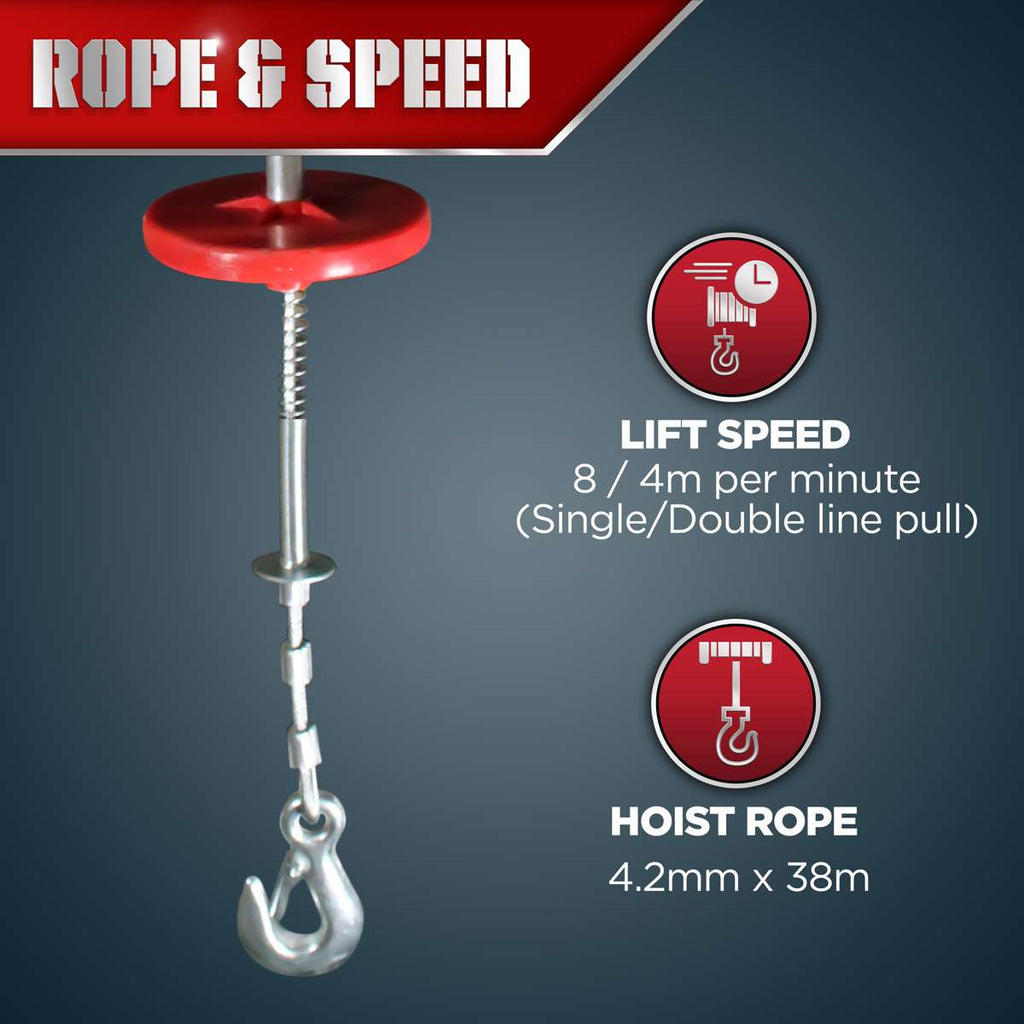

Lift Speed8 / 4m p/min

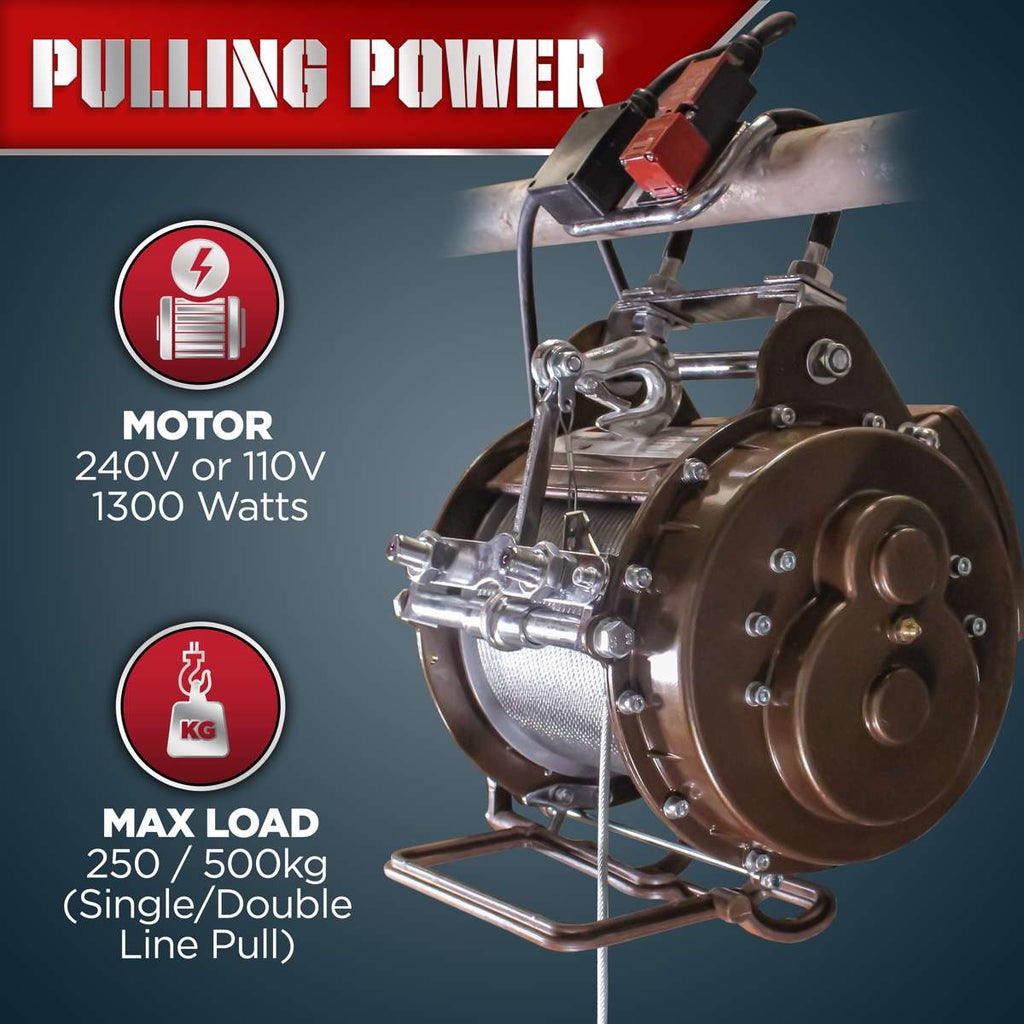

Power1000
Cable MaterialSteel
Cable – Dia x L4.2mm x 38m
RatingIP65
Limit Safety SwitchUpper & Lower
Work RateS3 20% 10mins
Weight36.0 kg
Warranty1 Years
CertificationCE



What's in the box:

  • Scaffold Hoist
  • Steel Winch Rope with Hook
  • Pendant Remote or Wireless Remote
User Manual Download

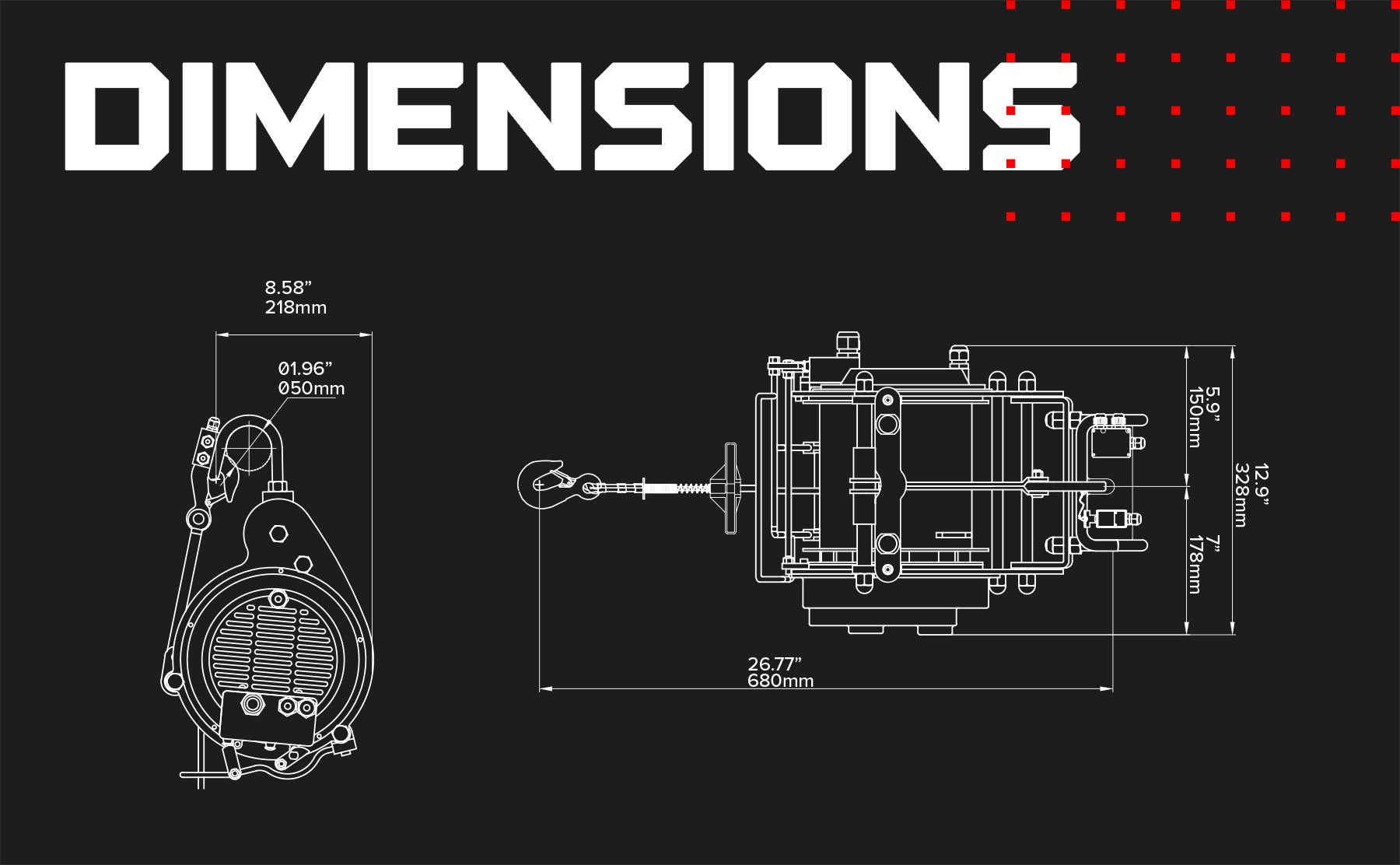

Technical Drawing Download
Brochure Download

1 Year Warranty

Winch Solutions are the sole distributors of WARRIOR WINCHES.

Winch Solutions (“seller” or winch solutions) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for 1 year of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (1) one years (12 Months) from the original purchase provable date of purchase.

Any product Winch Solutions determines to be defective will be repaired or replaced at Winch Solutions sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

All purchases must be registered.

To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

Winch Solutions shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

Winch Solution reserves the right to change the Product design without notice. Winch Solutions reserves the right to replace any part or whole unit with a newer design of the same function.
