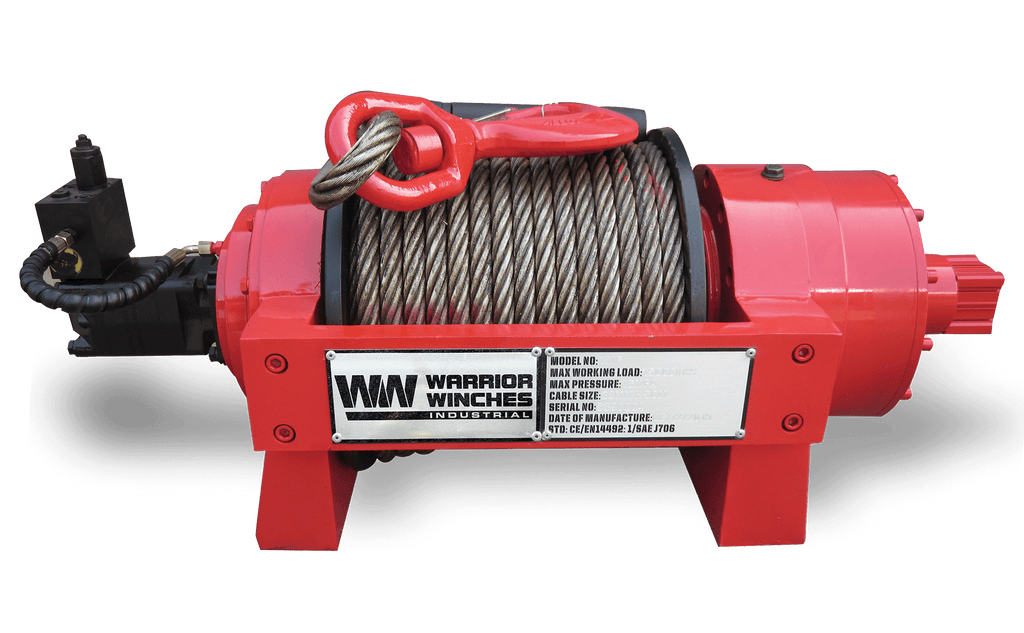

Tough and compact, the JP series are heavy duty hydraulic winches designed and tested for toughest applications. Minimum rope to drum ratio of 10:1, multi disc frictional brake, balance valve and rope tensioner as standard. Manufactured to meet GJB82-86 National Military Standard.
| Rated Line Pull | 33000 lbs |
| Motor Type | Hydraulic Sauer Danfoss OMS 245 |
| Gearing | 36:1 |
| Clutch | Air Clutch |
| Braking Action | Auto Hydraulic |
| Drum Size (Dia x L) | 210 x 340 mm |
| Cable Material | Steel |
| Cable – Dia x L | 22mm x 50m |
| Mounting Pattern | 522mm ×180/280mm mm |
| Dimensions | 1077 x 640 x 420 mm |
| Weight | 410.0 kg |
| Max Flow L/Min | 120 L/Min |
| Max Pressure MPA | 16.0 Bar |
| Certification | CE, UKCA |
What's in the box:
- JP Hydraulic Winch
- Steel Winch Rope
- Heavy Duty Hook
- Balance Valve
- Tensioner
Limited lifetime with 3 year on electrical
Winch Solutions are the sole distributors of WARRIOR WINCHES.
Winch Solutions (“seller” or winch solutions) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for the lifetime of the winch.
The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (3) three years (36 Months) from the original purchase provable date of purchase.
Any product Winch Solutions determines to be defective will be repaired or replaced at Winch Solutions sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.
All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.
To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.
The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.
This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.
This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes
Winch Solutions shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.
Winch Solution reserves the right to change the Product design without notice. Winch Solutions reserves the right to replace any part or whole unit with a newer design of the same function.
