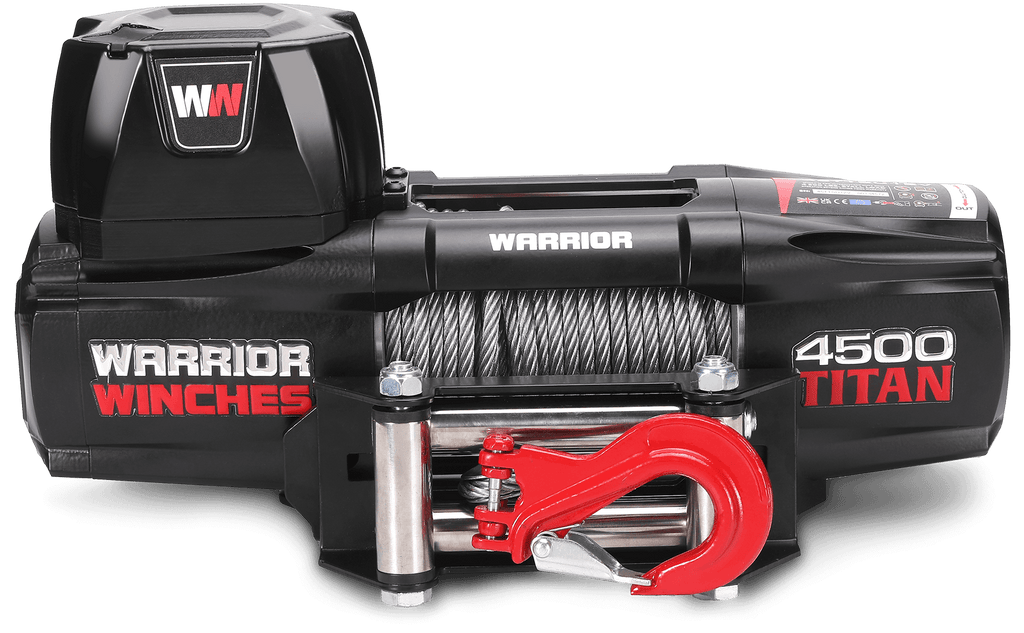

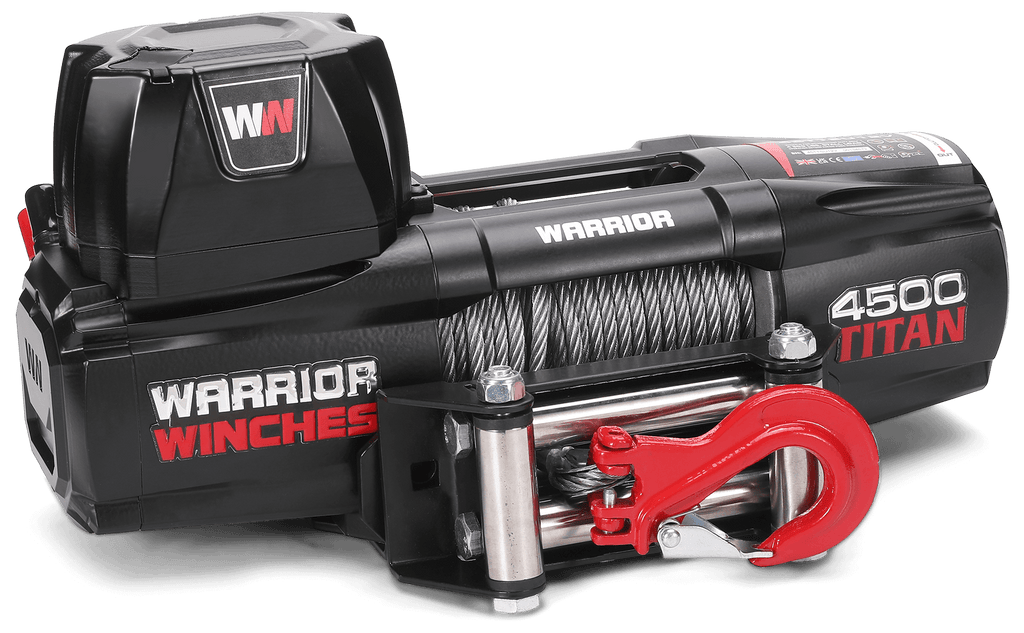

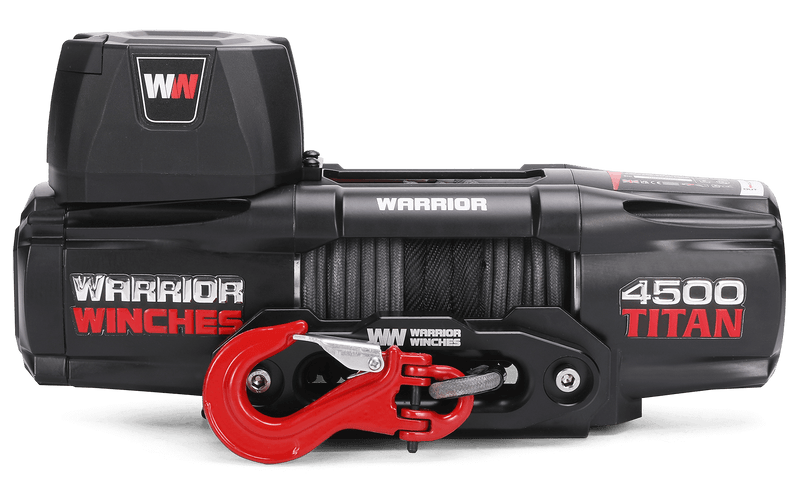

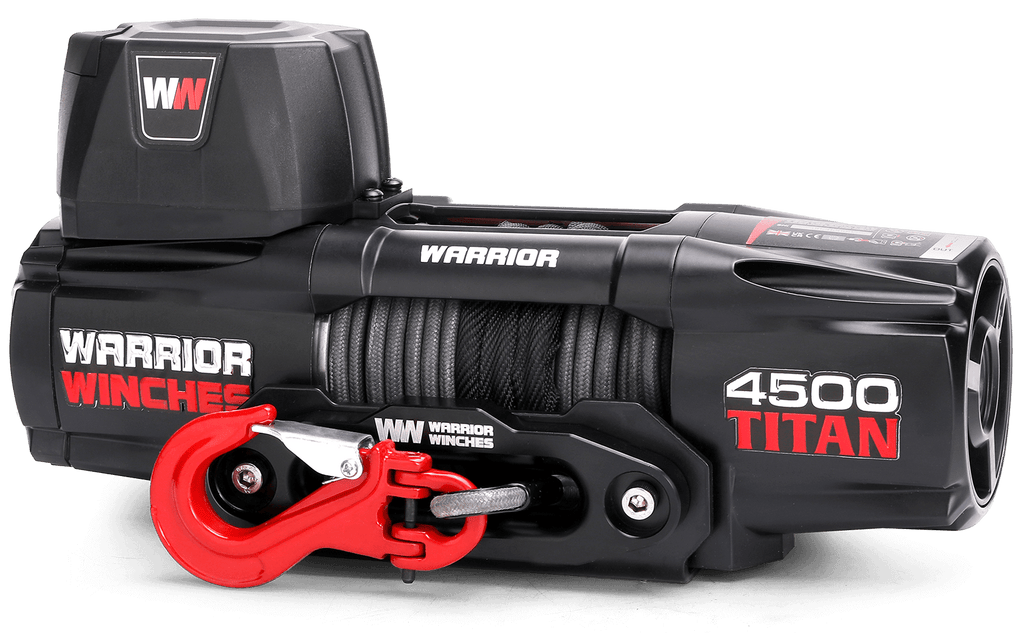

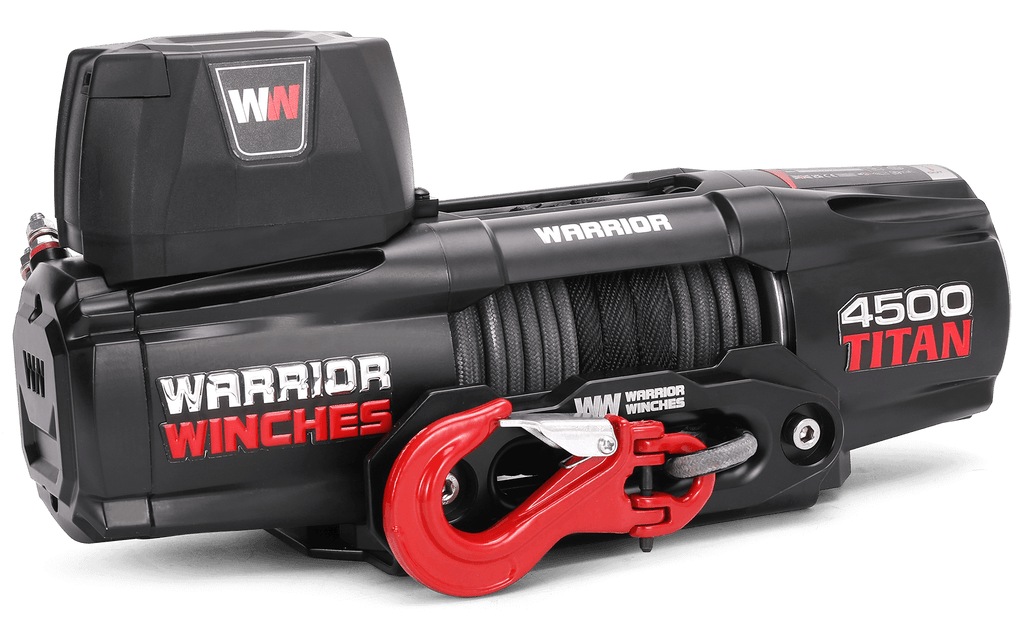

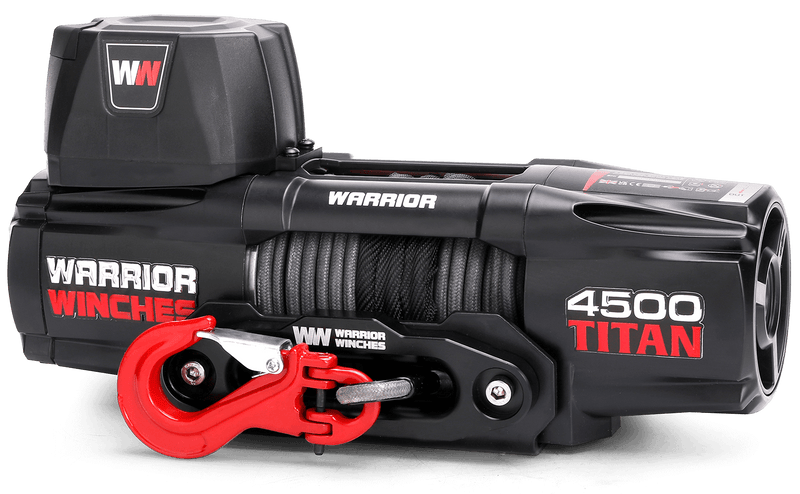

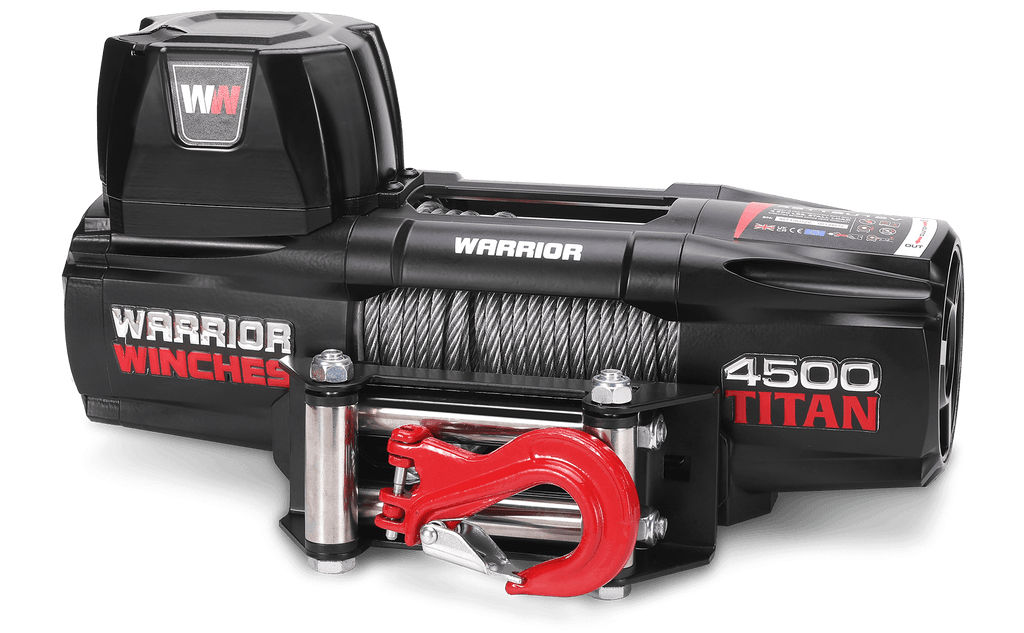

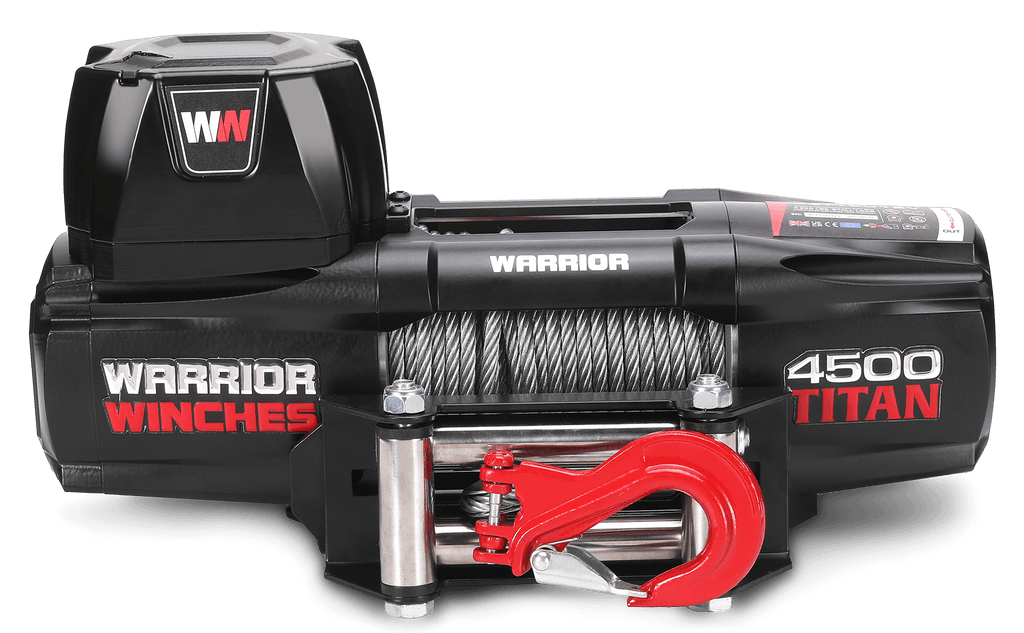

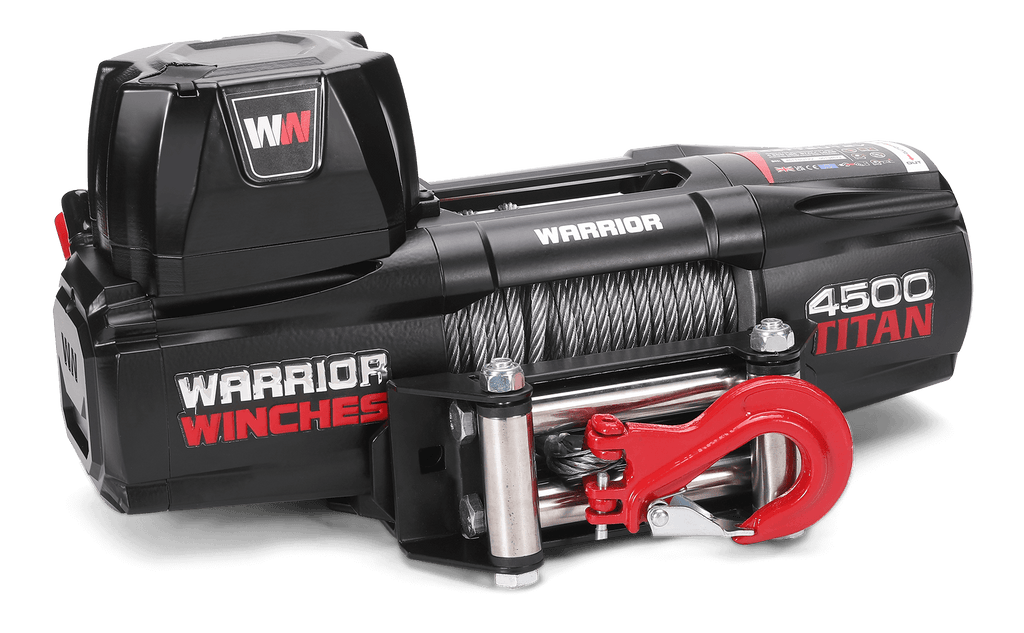

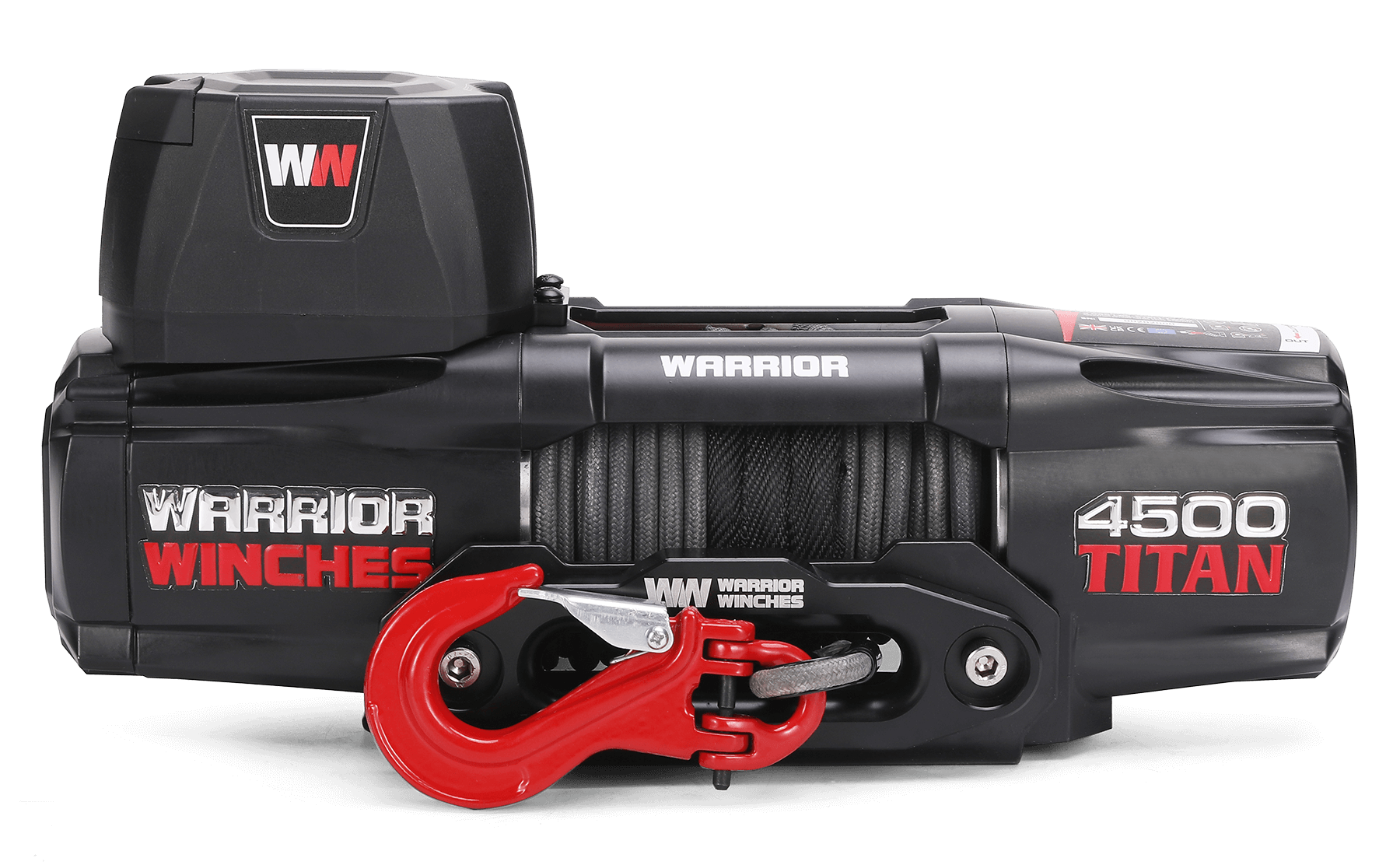

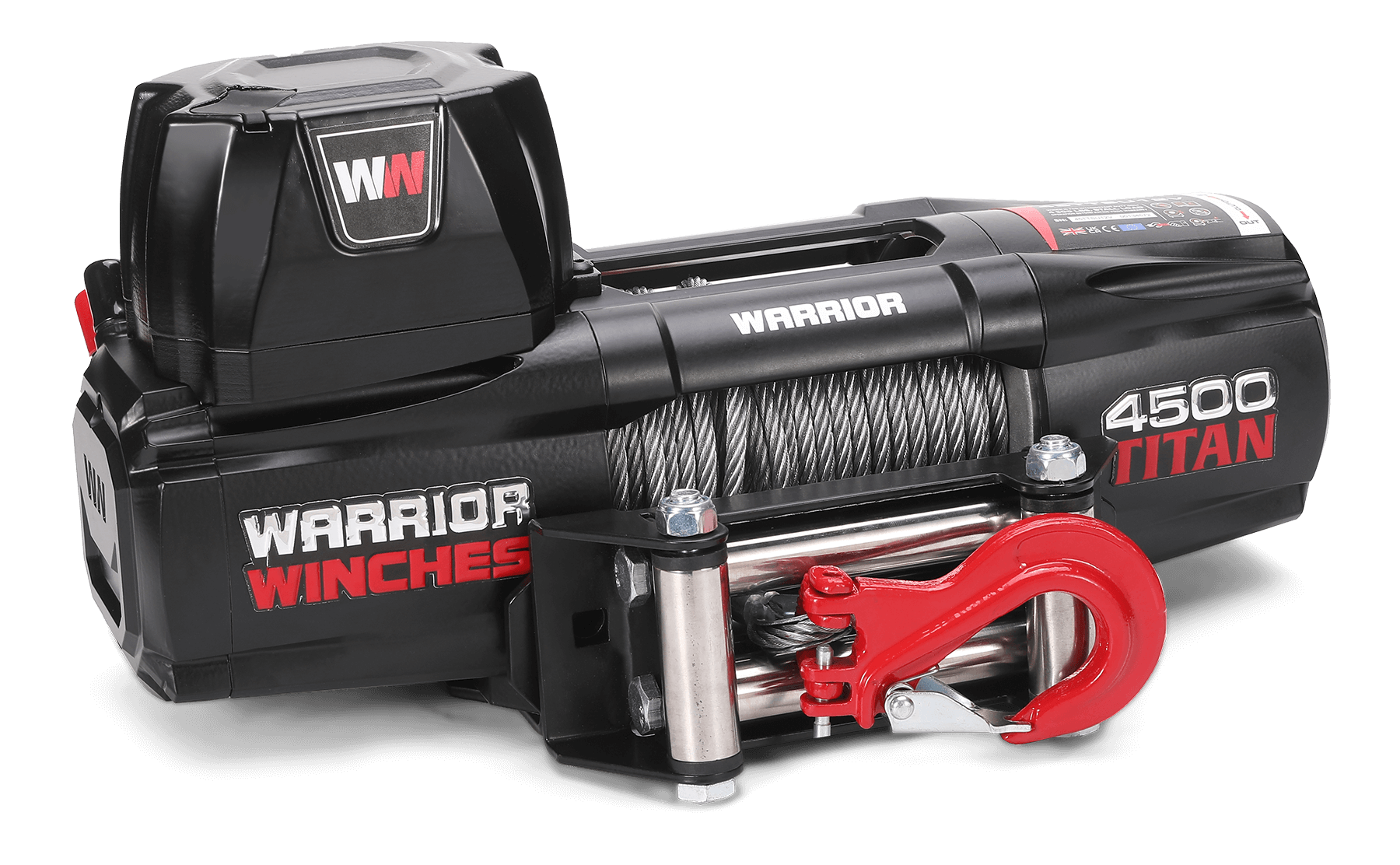

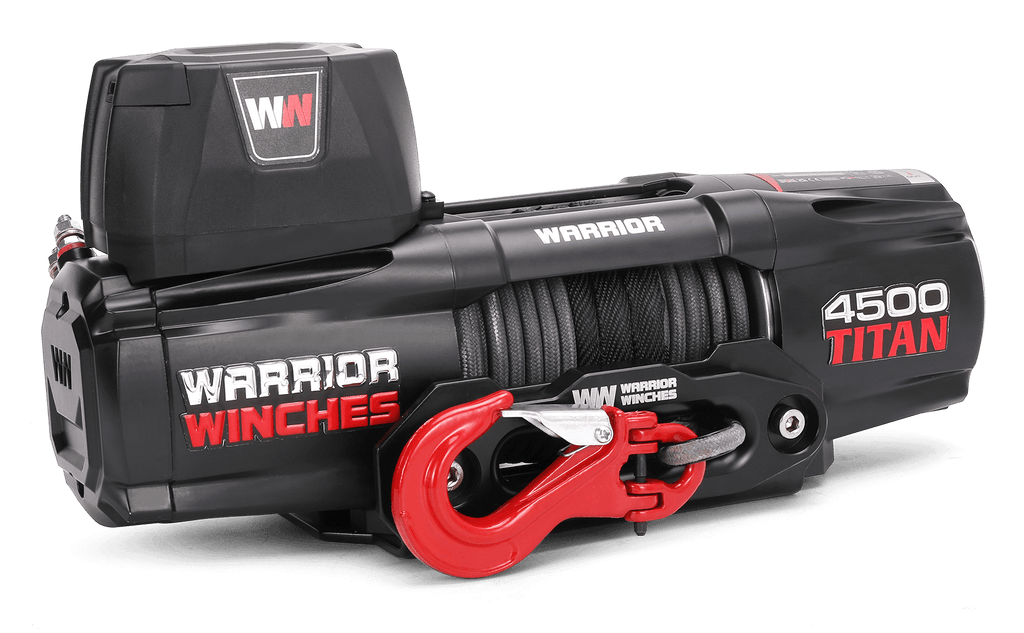

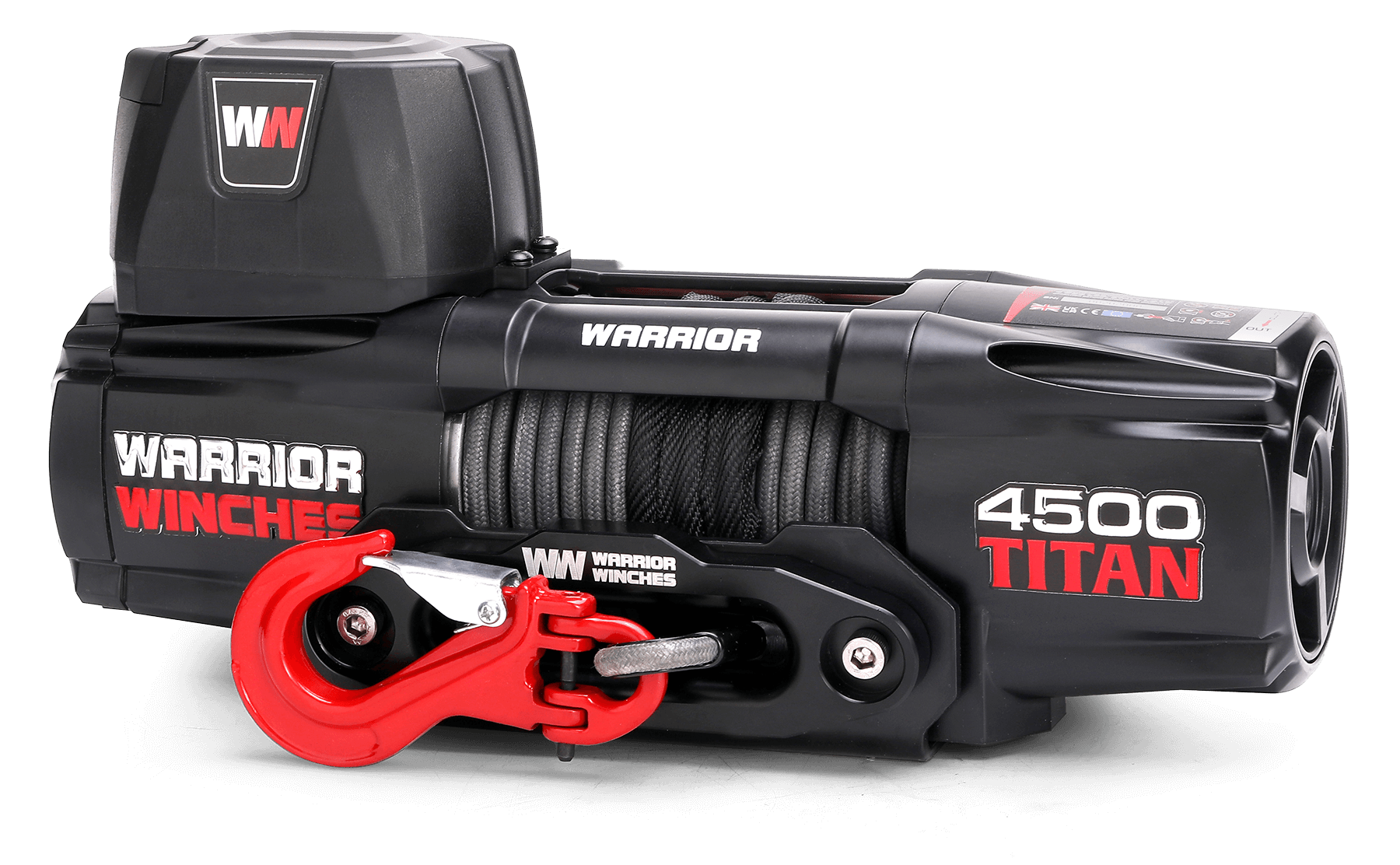

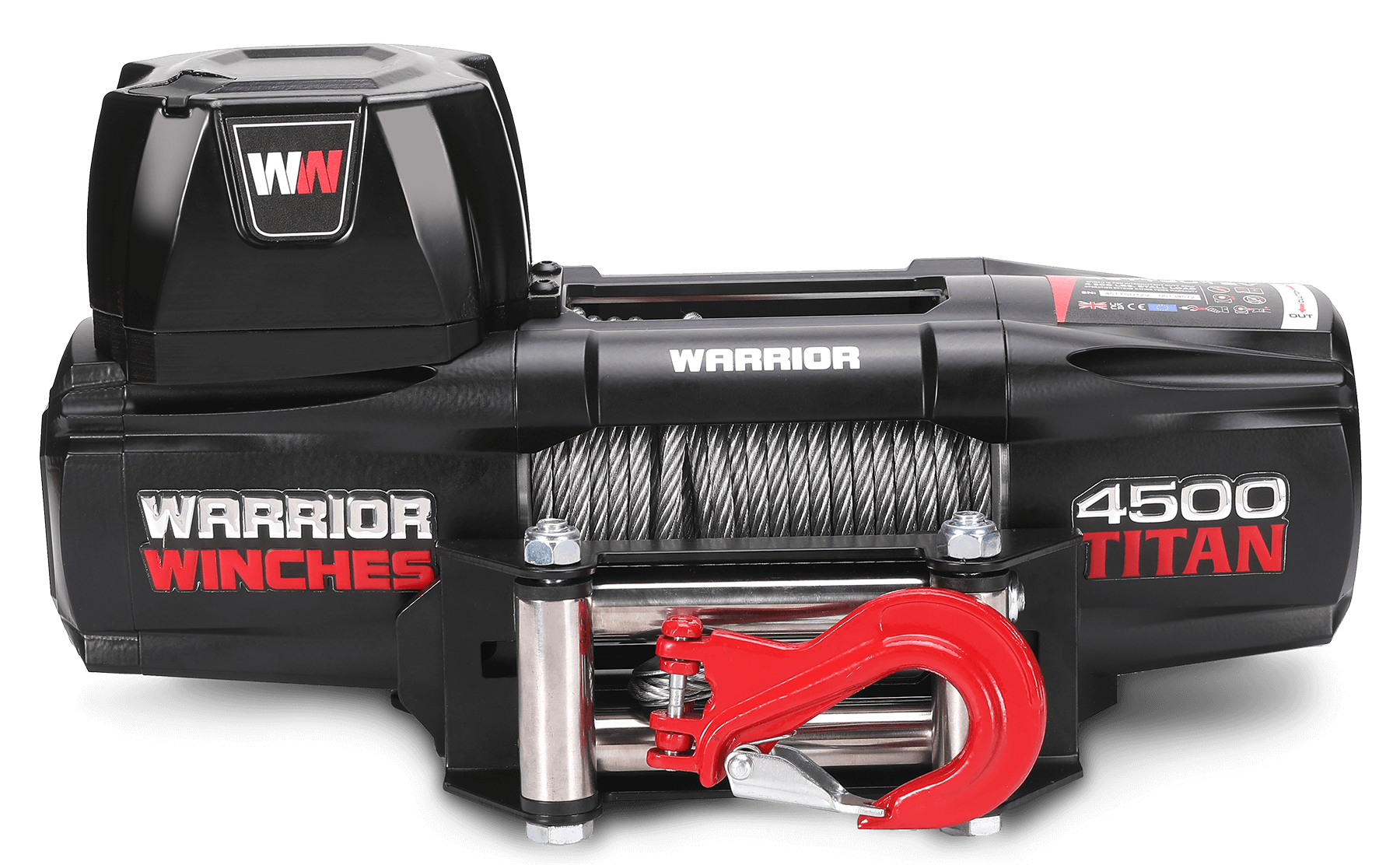

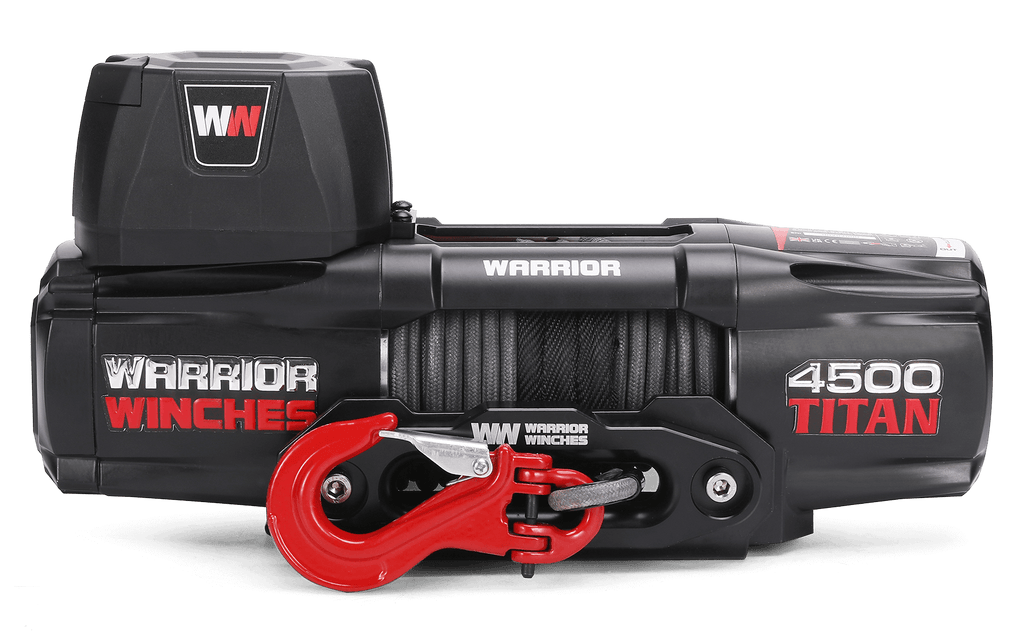

Titan 4500 Electric Winch

SKU EAN

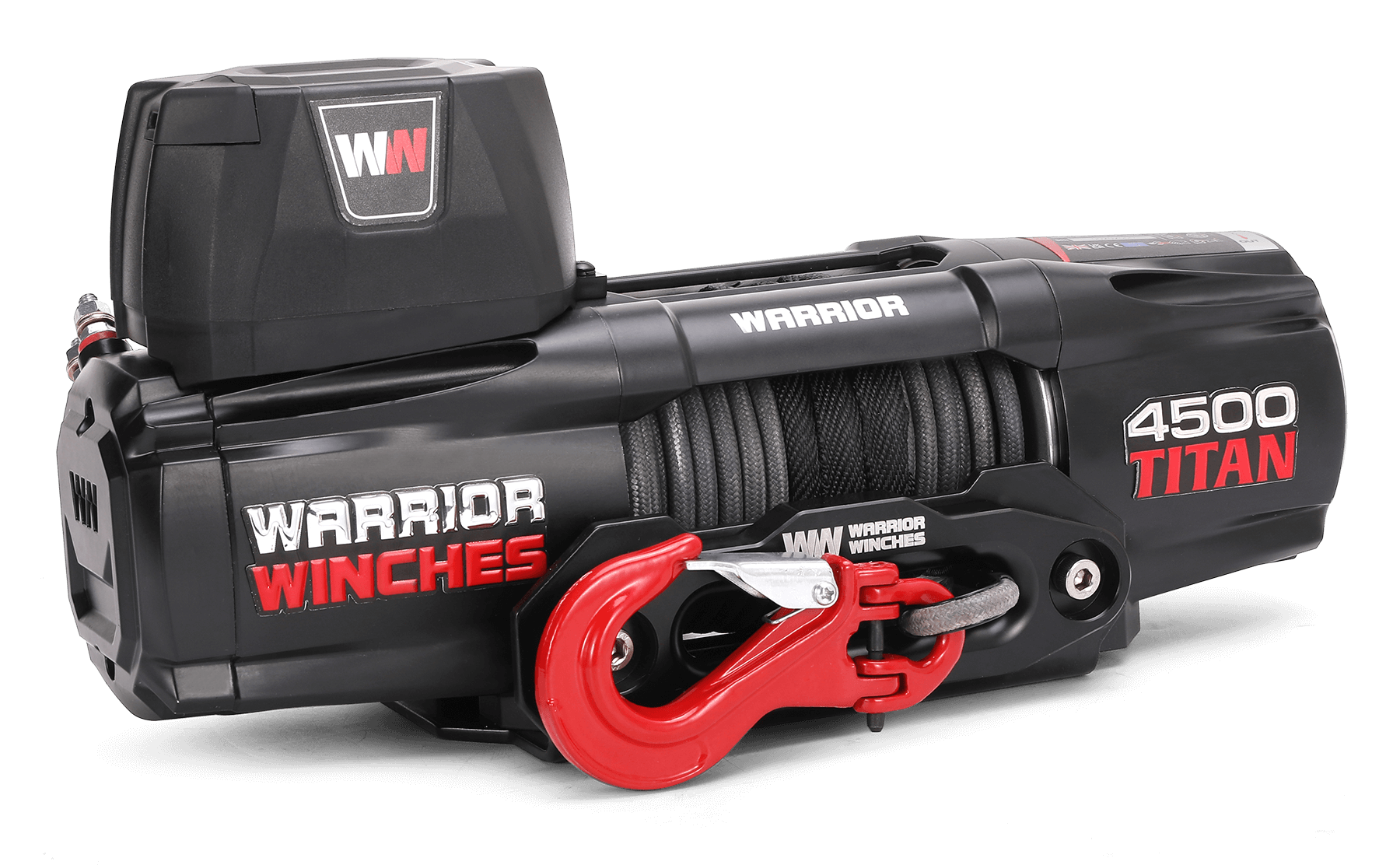

12v / Synthetic Rope 45TTAU12 5056789801777

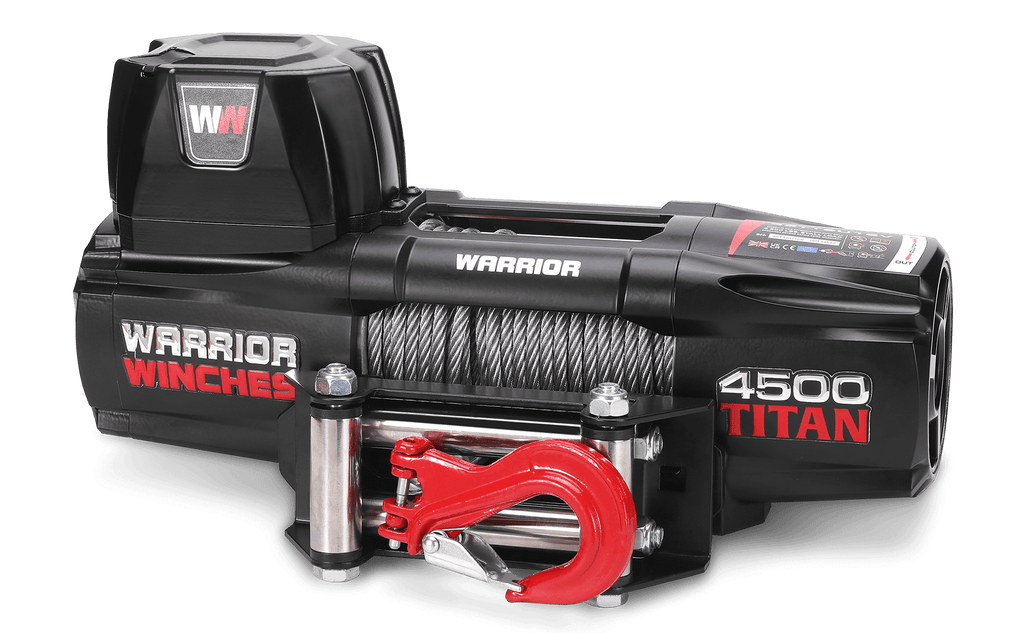

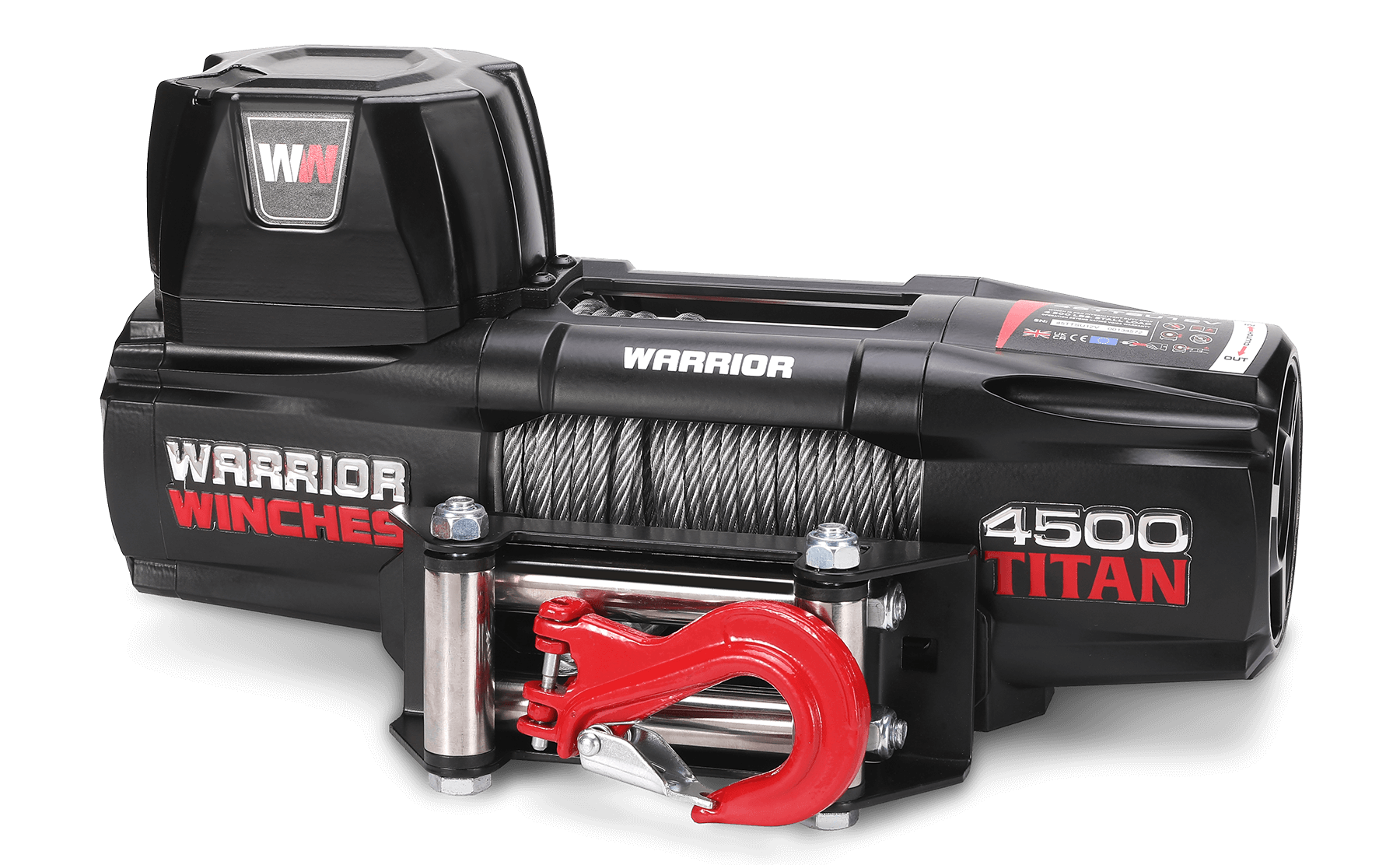

12v / Steel Rope 45TTSU12 5056789801760
24v / Synthetic Rope 45TTAU24 5056789802156
24v / Steel Rope 45TTSU24 5056789802149

Voltage: 12v
Rope: Synthetic Rope

Features

  • Maximum Protection in Any Environment: Full metal armour casing shields internal components from impacts, dust, and harsh weather, extending the winch's lifespan in extreme conditions.
  • Faster Recoveries, Less Waiting: Higher-speed line performance ensures quicker vehicle recovery, saving time and reducing effort during demanding operations.
  • Enhanced Safety on Slopes and Heavy Loads: The special brake design ensures precise stopping power, preventing accidental rollback or slippage on steep terrain.
  • Abrasion Resistant Pulling Power: Fitted with Armortek Extreme Synthetic Rope, the most advanced synthetic rope in its range with an outer 24 strand abrasion guard across the entire length.
  • Operate from Anywhere, Anytime: 2-in-1 wired and wireless remote control offers flexibility, letting you choose how to stay in control based on your environment. USB recharging cable included for easy recharging on the road.

The Titan Range winches are a premium upgrade from the renowned Ninja Range, built to deliver faster, quieter, and smoother recovery solutions. Packing impressive strength, easily pulling up to 4500 lbs.

Designed with extreme off-roaders and heavy-duty enthusiasts in mind, the Titan Range incorporates cutting-edge engineering and top-tier materials to ensure dependable performance when it matters most.

Whether you're scaling rocky trails, pulling through deep mud, recovering heavy equipment, or launching and retrieving boats, these winches provide the speed, strength, and control needed to conquer every challenge.

When performance, durability, and ease of use are non-negotiable, the Titan Range delivers. Every winch in the range is backed by a 5-year warranty, giving you confidence and peace of mind for years to come.

Rated Line Pull4500 lbs
Motor Type12V:Input: 2.5kW / 3.4hp; Output: 1.1kW / 1.4hp
24V:Input: 2.7kW / 3.6hp; Output: 1.3kW / 1.7hp
ClutchManual
Gearing166:1
Gearing SystemPlanetary
Braking ActionMechanical Spring
Drum Size (Diameter x Length)50 x 138mm
Controls2in1 Rechargeable Wired/Wireless Remote
Cable MaterialSynthetic or Steel
Cable Size (Diameter x Length)Synth: 6mm x 15m
Steel: 6mm x 14.5m
FairleadHawse or Roller
Mounting Pattern6.6 ×3 in (168 × 76.2 mm) 4-M8

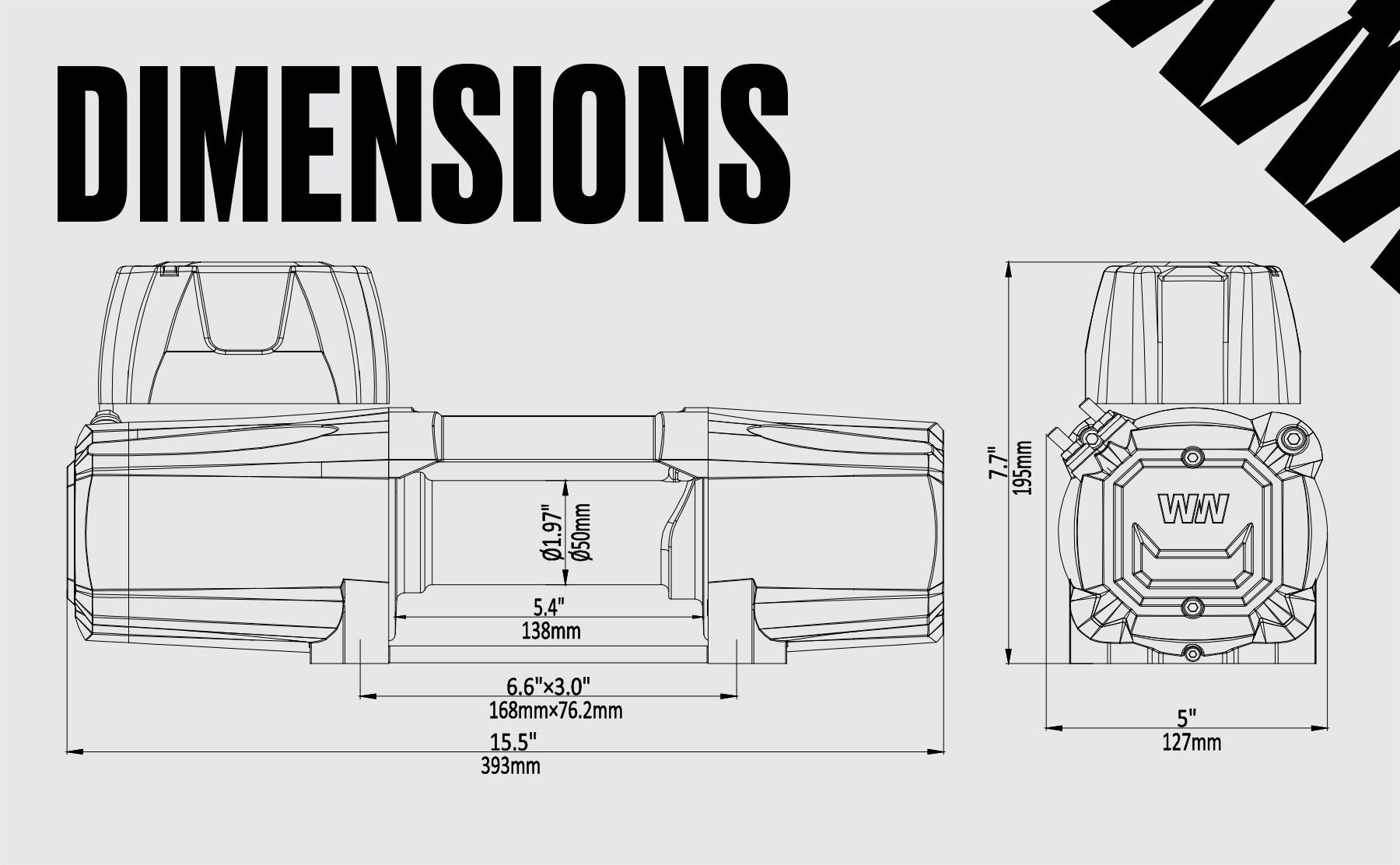

Dimensions393 x 127 x 195 mm
WeightSynth: 13.5 kg
Steel: 15.5 kg
Waterproof Rating (IP)67



Layer of Rope/Cable Line Pull: lbs(kgs) Total Rope on Drum ft (m)
1 4500(2041) 11.5(3.5)
2 3700(1678) 26.2(8)
3 3150(1428) 42.6(13)
4 2740(1242) 49.2(15)
Line Pull Line Speed ft/min (m/min) Amp Draw
lbs (kgs) 12v
24v
12v 24v
0 13.8 (4.2) 14.8 (4.5) 25 13
1000 (453) 11.8 (3.6) 12.5 (3.8) 55 30
2500 (1134) 8.8 (2.7) 10.2 (3.1) 125 60
4500 (2041) 5.6 (1.7) 7.2 (2.2) 230 110

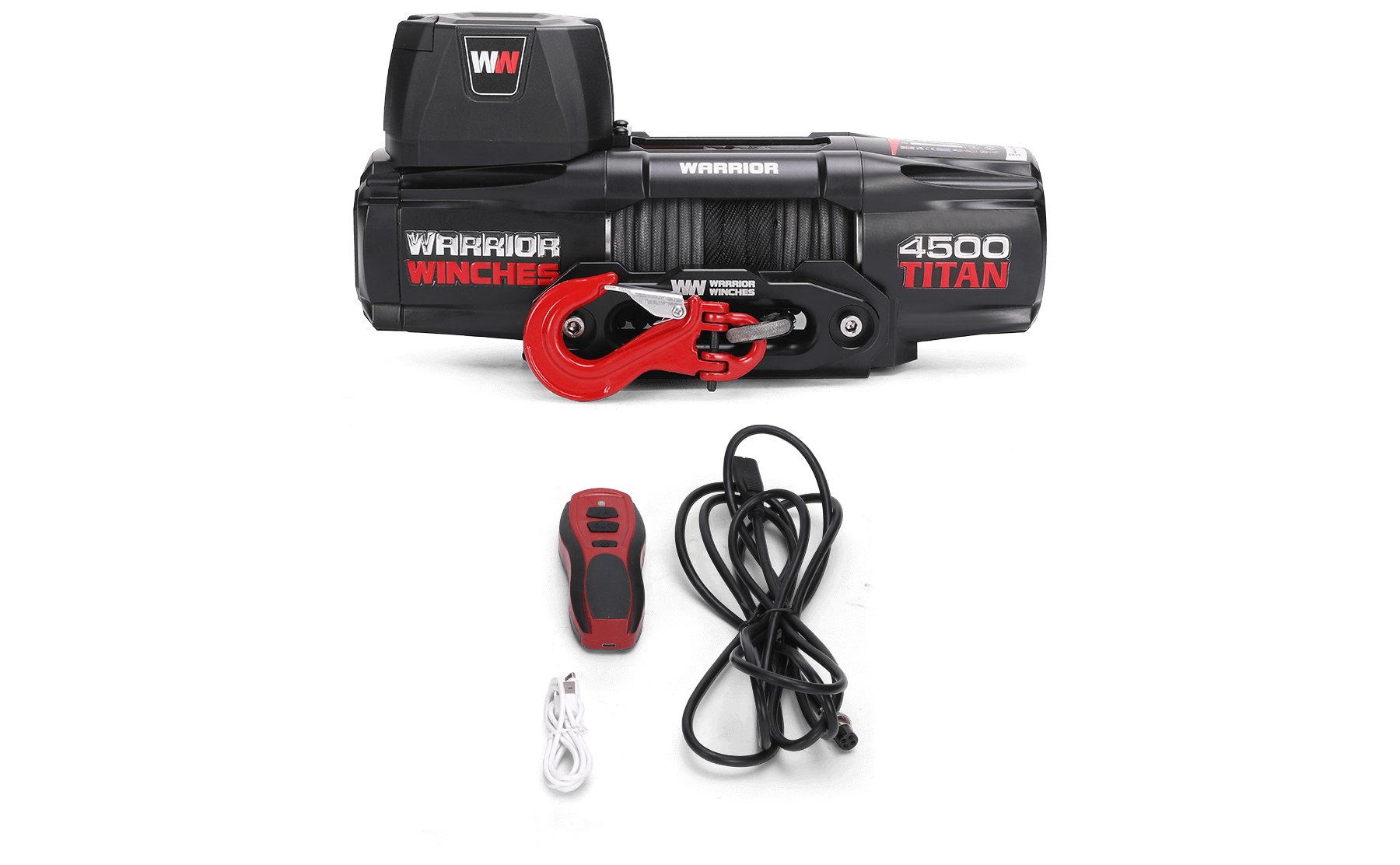

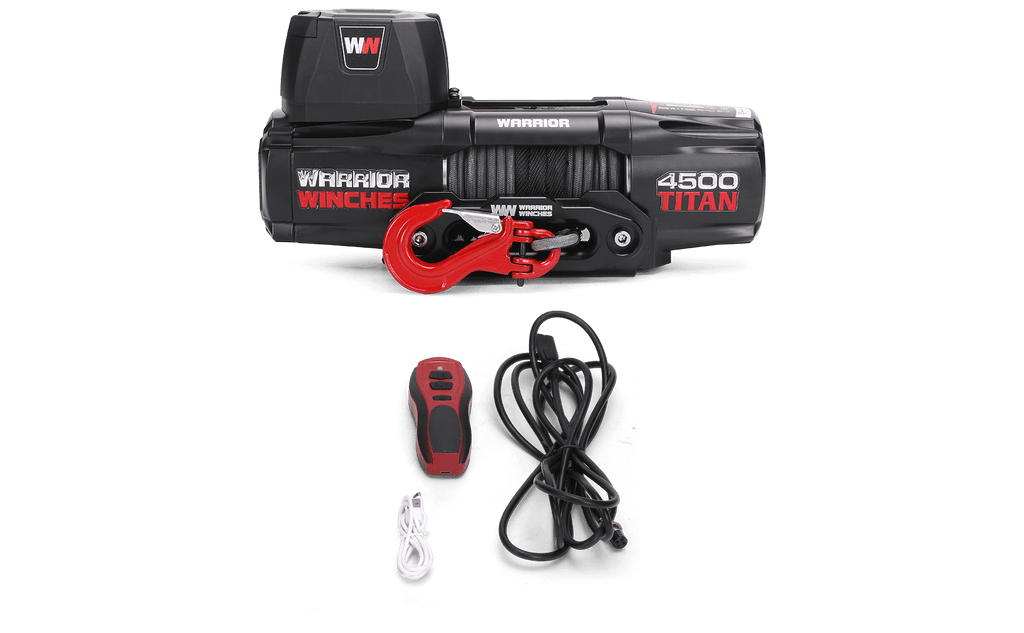

What's in the box:

  • Titan Winch
  • Rope and Hook
  • Fairlead
  • Mounting Plate
  • Rechargeable Wired/Wireless Remote
  • Heavy Duty Battery Cables
User Manual Download
